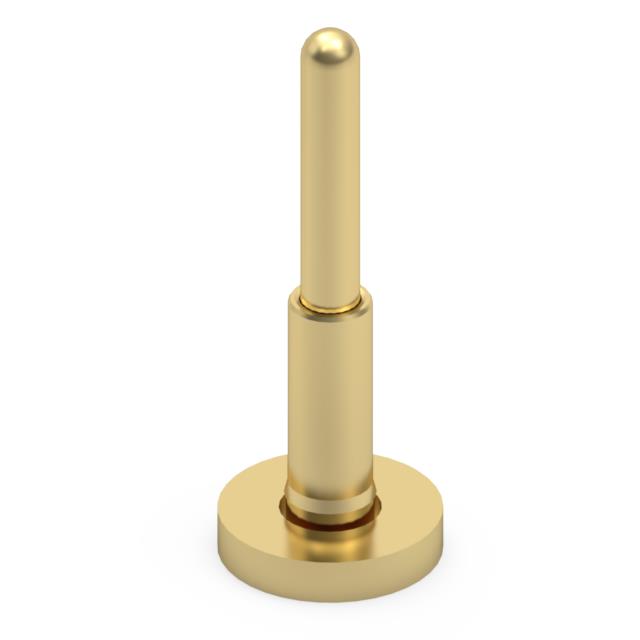

0997-8-50-20-75-14-11-0

Active

Mill-Max Manufacturing Corp.

CONTACT SPRING LOADED SMD GOLD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONTACT SPRING LOADED SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	0997-8-50-20-75-14-11-0

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	5.2 A
Mating Cycles	1000000
Maximum Working Height [Max]	0.41 in
Maximum Working Height [Max]	10.41 mm
Minimum Working Height [Min]	0.355 in
Minimum Working Height [Min]	9.01 mm
Mounting Type	Surface Mount
Operating Force - Initial	10 gf
Operating Force - Mid Compression	60 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	0.159 in
Pad Layout Dimension [diameter]	4.04 mm
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm

Part	Minimum Working Height [Min]	Minimum Working Height [Min]	Operating Force - Initial	Plunger Size [diameter]	Plunger Size [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Operating Force - Mid Compression	Contact Type	Mating Cycles	Maximum Working Height [Max]	Maximum Working Height [Max]	Mounting Type	Current Rating (Amps)	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Contact Finish	Contact Material
Mill-Max Manufacturing Corp. 0997-8-50-20-75-14-11-0	0.355 in	9.01 mm	10 gf	0.042 in	1.07 mm	-55 °C	125 °C	0.51 µm	20 µin	60 gf	Sleeve & Plunger (Pogo Pins)	1000000	0.41 in	10.41 mm	Surface Mount	5.2 A	0.159 in	4.04 mm	Gold	Brass Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.54

General part information

Contact Spring Surface Mount
