ObsoletePanasonic Electronic Components
CAP KIT CERAMIC 1UF-22UF 400PCS
Deep-Dive with AI
Search across all available documentation for this part.
Q2636043
ObsoletePanasonic Electronic Components
CAP KIT CERAMIC 1UF-22UF 400PCS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | Q2636043 | - Series |
|---|---|---|
| Applications | General Purpose | General Purpose, Switching, High Frequency, RFI Suppression, EMI, Microwave, RF |
| Capacitance Range [Max] | 22 µF | 0.01 - 8200 µF |
| Capacitance Range [Min] | 1 µF | 0.01 - 4700 µF |
| Features | - | X2 Safety Rated, Low Loss, High Q |
| Inductance Range | - | 1 - 1.5 nH |
| Inductance Range | - | 39 - 100 nH |
| Inductance Range | - | 10 nH |
| Inductance Range | - | 1 µH |
| Kit Type | Ceramic | Film, Fixed, Ceramic, Aluminum, Trimmer |
| Material - Core | - | Non-Magnetic |
| Mounting Type | Surface Mount, MLCC | Through Hole, Surface Mount, MLCC |
| Number of Turns | - | 1 |
| Packages Included | 1005 ~ 3216 | 1005, 1608, 3216, 2012, 3216 Metric, 1005 ~ 3216 |
| Packages Included | 0402 ~ 1206 | Radial, 0402 (1005 Metric), 1206, 0805, 0402, 0603, 0402 ~ 1206, 0805 (2012 Metric), 3216, 2012, 1913, 3225, 1210, 4833 Metric, 0603 (1608 Metric), 0201 (0603 Metric) |
| Packages Included | - | 2917 |
| Packages Included | - | 7343 Metric |
| Power (Watts) | - | 1 W |
| Power (Watts) | - | 20 W |
| Quantity | 20 Each, 400 Pieces | 20 - 600 Pieces |
| Resistance (Ohms) | - | 220 Ohms |
| Resistance (Ohms) | - | 1M |
| Resistive Material | - | Cermet |
| Style | - | Multilayer, Wirewound |
| Termination Style | - | J Lead |
| Tolerance | 10 %, 20 % | 0.05 - 25 % |
| Voltage - Rated | - | 25 - 400 V |
| Voltage - Rated [Max] | 25 V | 16 - 200 V |
| Voltage - Rated [Min] | 6.3 V | 2 - 50 V |
- Series
CAP KIT FILM 0.01UF-1UF 170PCS
| Part | Capacitance Range [Max] | Capacitance Range [Min] | Applications | Mounting Type | Voltage - Rated | Quantity | Tolerance | Packages Included | Kit Type | Inductance Range [Min] | Inductance Range [Max] | Style | Material - Core | Voltage - Rated [Min] | Voltage - Rated [Max] | Packages Included | Inductance Range [Min] [custom] | Inductance Range [Max] [custom] | Packages Included | Packages Included | Features | Termination Style | Resistive Material | Resistance (Ohms) [Min] | Resistance (Ohms) [Max] | Number of Turns | Power (Watts) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Electronic Components Q20902 | 1 µF | 0.01 µF | General Purpose | Through Hole | 250 V | 170 Pieces | 10 % | Radial | Film | |||||||||||||||||||
Panasonic Electronic Components Q17863 | 8200 pF | 1000 pF | General Purpose | Through Hole | 50 VDC | 300 Pieces | 5 % | Radial | Film | |||||||||||||||||||
Panasonic Electronic Components Q16080 | 0.33 µF | 100 pF | High Frequency, Switching | Through Hole | 50 VDC | 150 Pieces | 2 %, 5 % | Radial | Film | |||||||||||||||||||
Panasonic Electronic Components Q26058 | 0.1 µF | 1000 pF | General Purpose | Through Hole | 400 V | 150 Pieces | 10 % | Radial | Film | |||||||||||||||||||
Panasonic Electronic Components Q333186 | Surface Mount | 200 Pieces | 0402 (1005 Metric) | Fixed | 1 nH | 39 nH | Multilayer | Non-Magnetic | ||||||||||||||||||||
Panasonic Electronic Components Q1501437 | 10 µF | 1 µF | General Purpose | MLCC, Surface Mount | 20 Each, 400 Pieces | 10 %, 20 % | 0402, 0603, 0805, 1206 | Ceramic | 6.3 V | 25 V | 1005, 1608, 2012, 3216 | |||||||||||||||||
Panasonic Electronic Components Q109306 | 100 µF | 0.1 µF | General Purpose | Through Hole | 180 Pieces | 20 % | Radial | Aluminum | 6.3 V | 50 V | ||||||||||||||||||
Panasonic Electronic Components Q1158089 | 0.01 µF | 470 pF | General Purpose | MLCC, Surface Mount | 140 Pieces | 5 % | 1206 | Ceramic | 50 V | 200 V | 3216 Metric | |||||||||||||||||
Panasonic Electronic Components Q1936058 | 22 µF | 1 µF | General Purpose | MLCC, Surface Mount | 20 Each, 400 Pieces | 10 %, 20 % | 0402, 0603, 0805, 1206 | Ceramic | 6.3 V | 25 V | 1005, 1608, 2012, 3216 | |||||||||||||||||
Panasonic Electronic Components Q2636043 | 22 µF | 1 µF | General Purpose | MLCC, Surface Mount | 20 Each, 400 Pieces | 10 %, 20 % | 0402 ~ 1206 | Ceramic | 6.3 V | 25 V | 1005 ~ 3216 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
- Series

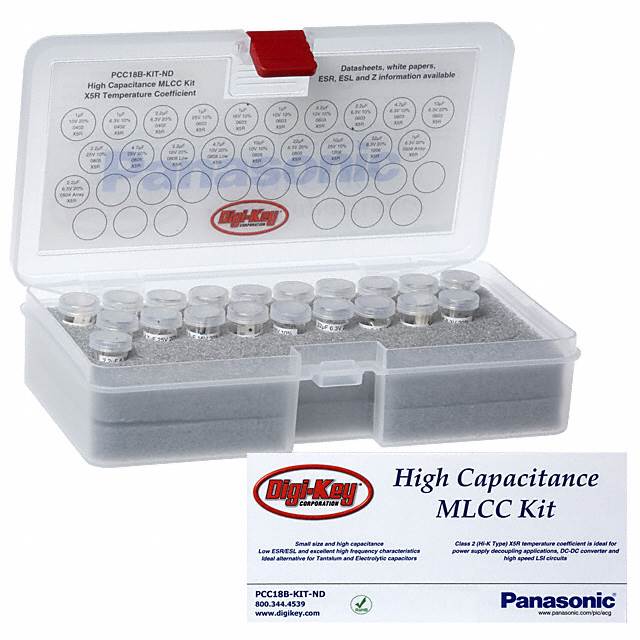

Ceramic Capacitor Kit 1µF ~ 22µF 6.3 ~ 25V Surface Mount, MLCC 400 Pieces (20 Values - 20 Each)
