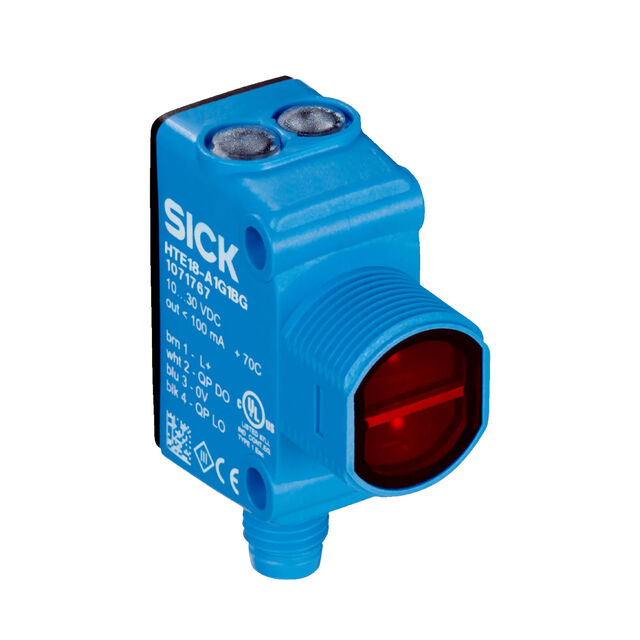

1078491

Active

SICK, Inc.

SENSOR PROXIMITY 300MM PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROXIMITY 300MM PNP

Technical Specifications

Parameters and characteristics for this part

Part	Output Configuration	Ingress Protection	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Connection Method	Sensing Method	Cable Length	Cable Length
SICK, Inc. 1080327	NPN/PNP	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Connector M12	Proximity
SICK, Inc. 1071044	PNP	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Connector M12	Proximity
SICK, Inc. 1074590	PNP	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Cable with Connector	Proximity	78.74 in	2 m
SICK, Inc. 1078491	PNP	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Connector M8	Proximity
SICK, Inc. 1075806	PNP - Dark-ON/Light-ON - Selectable	IP67 IP69K	500 µs	30 VDC	10 VDC		Red LED	65 °C	-40 °C	15 cm	5.906 "	5 mm	0.197 in	4POS Connector M12
SICK, Inc. 1075808	PNP	IP67 IP69K	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Cable	Proximity	78.74 in	2 m
SICK, Inc. 1075807	NPN	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Connector M12	Proximity
SICK, Inc. 1075809	NPN	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Cable	Proximity	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 164.76

General part information

Proximity Optical Sensor 0.197" ~ 11.811" (5mm ~ 300mm) PNP

Technical documentation and resources

No documents available
