Specification	LPC845M301JHI48E

A/D Channels	12 count
A/D Resolution (bits)	12 bit
Connectivity	USART, UART, SPI, I2C
Core Configuration	Single-Core
Core Processor	ARM® Cortex®-M0+
Core Size (Bit Width)	32 Bit
D/A Channels	2 count
D/A Resolution (bits)	10 bit
Mounting Type	Surface Mount
Number of I/O	42
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal, External
Package / Case	48-VFQFN Exposed Pad
Package Length	7 mm
Package Name	48-HVQFN
Package Width	7 mm
Peripherals	PWM, Brown-out Detect, WDT, POR, DMA, Reset, Capacitive Touch
Program Memory Depth	64 K
Program Memory Size	64 KB
Program Memory Type	FLASH
Program Memory Width	8 bit
RAM Size Depth	16 K
RAM Size Width	8 bit
Speed	30 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	1.8 V

LPC845 Series

Part	Program Memory Depth	Program Memory Width	Program Memory Size	Mounting Type	Package / Case	D/A Channels	D/A Resolution (bits)	A/D Resolution (bits)	A/D Channels	Core Size (Bit Width)	RAM Size Width	RAM Size Depth	Package Length	Package Name	Package Width	Core Processor	Program Memory Type	Oscillator Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Peripherals	Connectivity	Speed	Number of I/O	Core Configuration	Converter Architecture	Suggested Programming Environment	Board Type	Type	Contents	Utilized IC / Part
NXP USA Inc. LPC845M301JHI48K
NXP USA Inc. LPC845M301JBD64E	64 K	8 bit	64 KB	Surface Mount	64-LQFP	2 count	10 bit	12 bit	12 count	32 Bit	8 bit	16 K	10 mm	64-LQFP	10 mm	ARM® Cortex®-M0+	FLASH	External Internal	105 °C	-40 °C	3.6 V	1.8 V	Brown-out Detect Capacitive Touch DMA POR PWM Reset WDT	I2C SPI UART USART	30 MHz	54	Single-Core
NXP USA Inc. LPC845M301JBD48E	64 K	8 bit	64 KB	Surface Mount	48-LQFP	2 count	10 bit	12 bit	12 count	32 Bit	8 bit	16 K	7 mm	48-LQFP	7 mm	ARM® Cortex®-M0+	FLASH	External Internal	105 °C	-40 °C	3.6 V	1.8 V	Brown-out Detect Capacitive Touch DMA POR PWM Reset WDT	I2C SPI UART USART	30 MHz	42	Single-Core
NXP USA Inc. LPC845M301JHI33K	64 K	8 bit	64 KB	Surface Mount	32-VFQFN Exposed Pad	1 count	10 bit	12 bit	12 count	32 Bit	8 bit	16 K	5 mm	32-HVQFN	5 mm	ARM® Cortex®-M0+	FLASH	External Internal	105 °C	-40 °C	3.6 V	1.8 V	Brown-out Detect DMA POR PWM Reset WDT	I2C SPI UART USART	30 MHz	29		SAR
NXP USA Inc. LPC845M301JHI48E	64 K	8 bit	64 KB	Surface Mount	48-VFQFN Exposed Pad	2 count	10 bit	12 bit	12 count	32 Bit	8 bit	16 K	7 mm	48-HVQFN	7 mm	ARM® Cortex®-M0+	FLASH	External Internal	105 °C	-40 °C	3.6 V	1.8 V	Brown-out Detect Capacitive Touch DMA POR PWM Reset WDT	I2C SPI UART USART	30 MHz	42	Single-Core
NXP USA Inc. LPC845M301JHI33Y	64 K	8 bit	64 KB	Surface Mount	32-VFQFN Exposed Pad	1 count	10 bit	12 bit	12 count	32 Bit	8 bit	16 K	5 mm	32-HVQFN	5 mm	ARM® Cortex®-M0+	FLASH	External Internal	105 °C	-40 °C	3.6 V	1.8 V	Brown-out Detect DMA POR PWM Reset WDT	I2C SPI UART USART	30 MHz	29	Single-Core

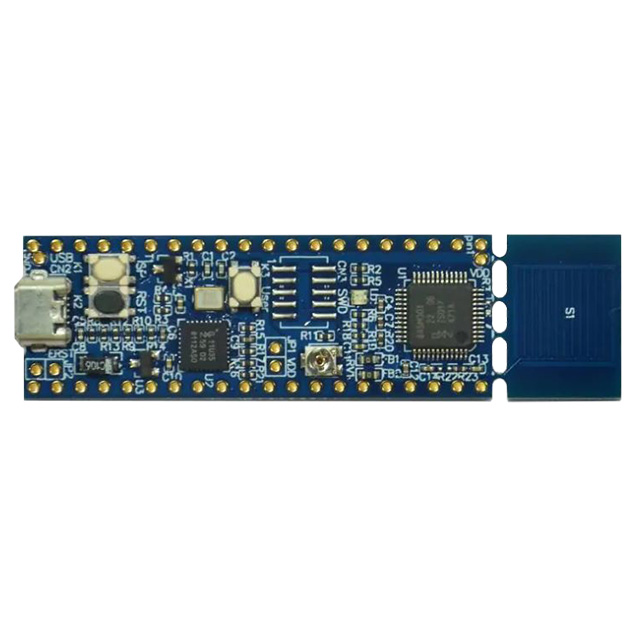

NXP USA Inc. LPC845-BRK				Fixed												ARM® Cortex®-M0+													MCUXpresso	Evaluation Platform	MCU 32-Bit	Board	LPC84x
NXP USA Inc. LPC845M301JHI48K	64 K	8 bit	64 KB	Surface Mount	48-VFQFN Exposed Pad	2 count	10 bit	12 bit	12 count	32 Bit	8 bit	16 K	7 mm	48-HVQFN	7 mm	ARM® Cortex®-M0+	FLASH	External Internal	105 °C	-40 °C	3.6 V	1.8 V	Brown-out Detect Capacitive Touch DMA POR PWM Reset WDT	I2C SPI UART USART	30 MHz	42	Single-Core
NXP USA Inc. LPC845M301JHI48Y	64 K	8 bit	64 KB	Surface Mount	48-VFQFN Exposed Pad	1 count	10 bit	12 bit	12 count	32 Bit	8 bit	16 K	7 mm	48-HVQFN	7 mm	ARM® Cortex®-M0+	FLASH	External Internal	105 °C	-40 °C	3.6 V	1.8 V	Brown-out Detect Capacitive Touch DMA POR PWM Reset WDT	I2C SPI UART USART	30 MHz	42	Single-Core
