T1349160121-000
ActiveTE Connectivity AMP Connectors
H16A-TGH-PG21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1349160121-000 | T134 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray, Black |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H16A | H24B, H6B, H16A, H16B, H10B |
| Size / Dimension [x] | 3.118 in | 2.362 - 4.724 " |
| Size / Dimension [x] | 79.2 mm | 60 - 120 mm |
| Size / Dimension [y] | 1.169 in | 1.169 - 1.693 in |
| Size / Dimension [y] | 29.7 mm | 29.7 - 43 mm |
| Size / Dimension [z] | 72.2 mm | 72 - 76 mm |
| Size / Dimension [z] | 2.843 in | 2.835 - 2.992 in |
| Style | Top Entry | Top Entry, Dual |
| Thread Size | PG21 | PG21, M32, PG29, PG11, M20, M25, PG16, NPT-3/4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 60 | $ 8.65 | |
T134 Series
H24B-TGH-RO-PG21
| Part | Connector Type | Ingress Protection | Housing Material | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Style | Lock Location | Housing Color | Thread Size | Housing Finish | Size | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1340240121-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | PG21 | Powder Coated | H24B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340240232-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Dual, Top Entry | Locking Clip (1) on Base Bottom | Gray | M32 | Powder Coated | H24B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340060129-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 60 mm | 2.362 in | 43 mm | 72 mm | 1.693 in | 2.835 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | PG29 | Powder Coated | H6B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340060211-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 60 mm | 2.362 in | 43 mm | 72 mm | 1.693 in | 2.835 in | Dual, Top Entry | Locking Clip (1) on Base Bottom | Gray | PG11 | Powder Coated | H6B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340060120-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 60 mm | 2.362 in | 43 mm | 72 mm | 1.693 in | 2.835 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | M20 | Powder Coated | H6B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1349166125-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 79.2 mm | 3.118 in | 29.7 mm | 72.2 mm | 1.169 in | 2.843 in | Top Entry | Locking Clip (1) on Base Bottom | Black | M25 | Powder Coated | H16A | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340240125-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | M25 | Powder Coated | H24B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1349160125-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 79.2 mm | 3.118 in | 29.7 mm | 72.2 mm | 1.169 in | 2.843 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | M25 | Powder Coated | H16A | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340160125-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | M25 | Powder Coated | H16B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340100129-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | PG29 | Powder Coated | H10B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1349160121-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 79.2 mm | 3.118 in | 29.7 mm | 72.2 mm | 1.169 in | 2.843 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | PG21 | Powder Coated | H16A | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1349160116-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 79.2 mm | 3.118 in | 29.7 mm | 72.2 mm | 1.169 in | 2.843 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | PG16 | Powder Coated | H16A | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340240129-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | PG29 | Powder Coated | H24B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340066132-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 60 mm | 2.362 in | 43 mm | 72 mm | 1.693 in | 2.835 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | M32 | Powder Coated | H6B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340100120-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | M20 | Powder Coated | H10B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1349160116-100 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 79.2 mm | 3.118 in | 29.7 mm | 72.2 mm | 1.169 in | 2.843 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | PG16 | Powder Coated | H16A | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340107134-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | NPT-3/4 | Powder Coated | H10B | 125 °C | -40 °C |
TE Connectivity AMP Connectors T1340160129-000 | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | Top Entry | Locking Clip (1) on Base Bottom | Gray | PG29 | Powder Coated | H16B | 125 °C | -40 °C |
Description
General part information
T134 Series

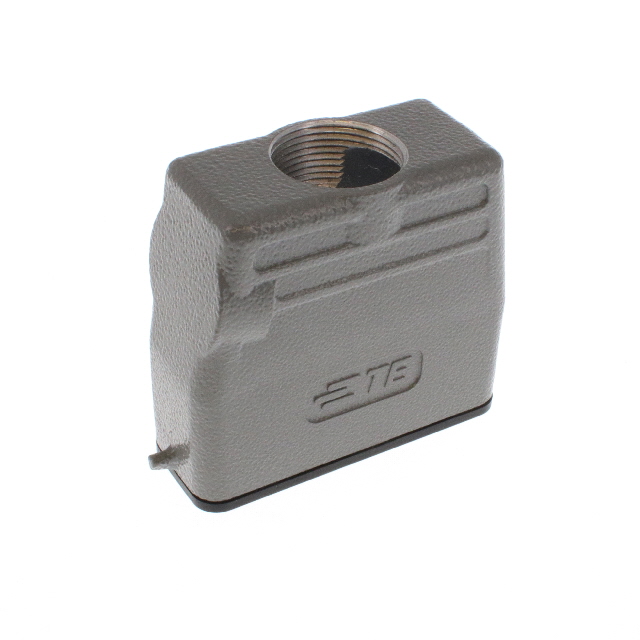

Hood Connector Top Entry PG21 H16A IP65 - Dust Tight, Water Resistant
