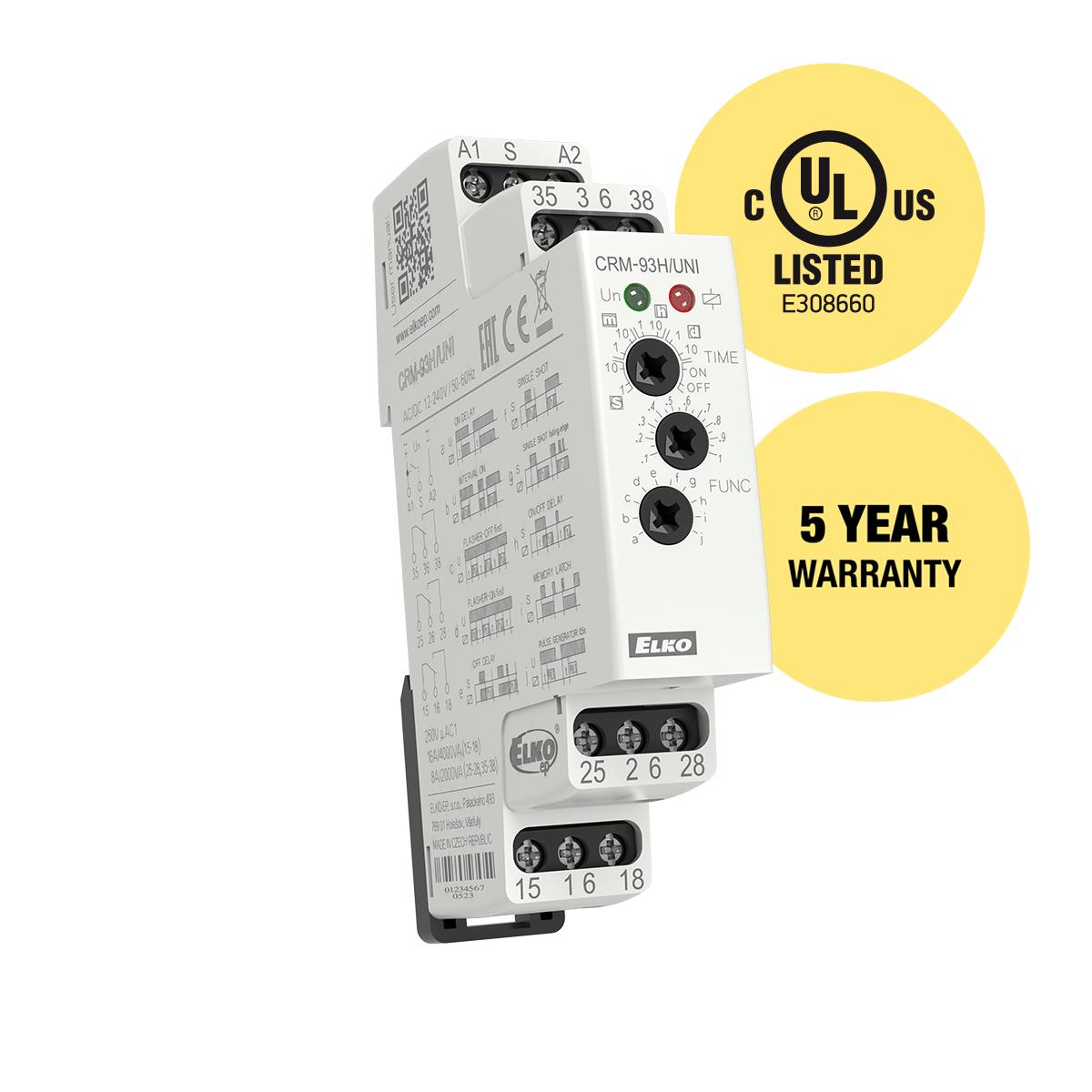

CRM-93H

Active

Aim Dynamics

10 MFD TIME 3PDT 16A@250VA/24VDC

Search across all available documentation for this part.

Active

Aim Dynamics

10 MFD TIME 3PDT 16A@250VA/24VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRM-93H	- Series

Circuit	3PDT (3 Form C)	3PDT (3 Form C)
Contact Rating @ Voltage	16 A, 24 VDC, 250 VAC	8 - 250 A
Delay Time [Max]	10 Days	10 - 2400 Days
Delay Time [Min]	0.1 Sec	0.1 Sec
Function	Programmable (Multi-Function)	Programmable (Multi-Function), Interval
Mounting Type	DIN Rail	DIN Rail
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Screw Terminal	Screw Terminal
Timing Adjustment Method	Screwdriver Slot	Screwdriver Slot
Timing Initiate Method	Trigger Signal, Input Voltage	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	12 VAC	12 - 24 VAC

10 MFD TIME SPDT 16A@250VA/24VDC

Part	Timing Initiate Method	Contact Rating @ Voltage	Relay Type	Function	Delay Time [Min]	Delay Time [Max]	Termination Style	Timing Adjustment Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Circuit
Aim Dynamics CRM-91H	Input Voltage, Trigger Signal	16 A, 24 VDC, 250 VAC	Mechanical Relay	Programmable (Multi-Function)	0.1 Sec	10 Days	Screw Terminal	Screwdriver Slot	240 VAC	12 VAC	DIN Rail
Aim Dynamics CRM-93H	Input Voltage, Trigger Signal	16 A, 24 VDC, 250 VAC	Mechanical Relay	Programmable (Multi-Function)	0.1 Sec	10 Days	Screw Terminal	Screwdriver Slot	240 VAC	12 VAC	DIN Rail	3PDT (3 Form C)
Aim Dynamics CRM-161	Input Voltage, Trigger Signal	8 A, 24 VDC, 250 VAC	Mechanical Relay	Programmable (Multi-Function)	0.1 Sec	10 Hrs	Screw Terminal	Screwdriver Slot	240 VAC	24 VAC	DIN Rail
Aim Dynamics CRM-2H	Input Voltage	16 A, 24 VDC, 250 VAC	Mechanical Relay	Interval	0.1 Sec	2400 Hrs	Screw Terminal	Screwdriver Slot	240 VAC	12 VAC	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 81.00

General part information

Programmable (Multi-Function) Time Delay Relay 3PDT (3 Form C) 0.1 Sec ~ 10 Days Delay 16A @ 250VAC/24VDC DIN Rail

Technical documentation and resources

No documents available
