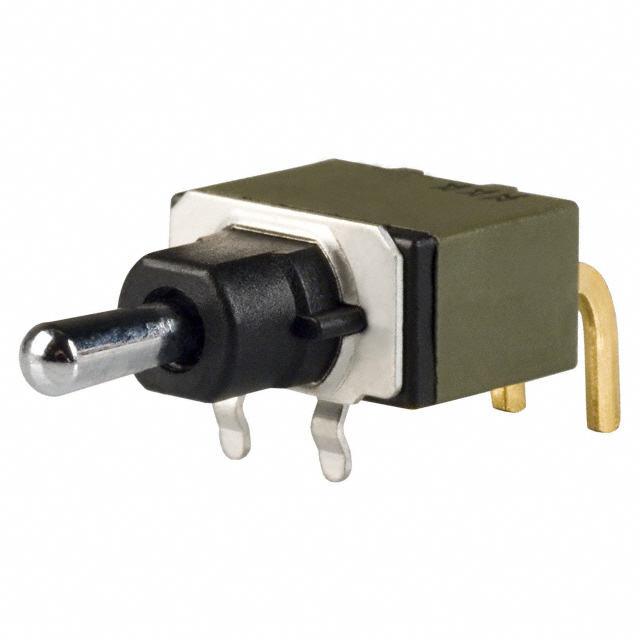

M2T12S4A5G30

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Voltage Rating - DC	Circuit	Features	Actuator Length [x]	Mounting Type	Voltage Rating - AC	Electrical Life	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Switch Function	Illumination	Actuator Material	Actuator Type
NKK Switches M2T12S4A5W13	4 A 6 A	30 V	SPDT	Process Sealed	7.62 mm	Through Hole	125 V	25000 Steps	PC Pin	-30 ░C	85 °C	Unthreaded	On-On	Non-Illuminated	Brass Nickel Plated	Standard Round
NKK Switches M2T12S4A5A03	4 A 6 A	30 V	SPDT	Process Sealed	7.62 mm	Through Hole	125 V	25000 Steps	PC Pin	-30 ░C	85 °C	Unthreaded	On-On	Non-Illuminated	Brass Nickel Plated	Standard Round
NKK Switches M2T12S4A5G30	0.4 VA	28 V	SPDT	Process Sealed	7.62 mm	Through Hole Right Angle	28 V	50000 Cycles	PC Pin	-30 ░C	85 °C	Unthreaded	On-On	Non-Illuminated	Brass Nickel Plated	Standard Round
NKK Switches M2T12S4A5W40/U	4 A 6 A	30 V	SPDT	Process Sealed	7.62 mm	Right Angle Through Hole Vertical	125 V	25000 Steps	PC Pin	-30 ░C	85 °C	Unthreaded	On-On	Non-Illuminated	Brass Chrome Plated	Standard Round
NKK Switches M2T12S4A5W30/U	6 A		SPDT	Process Sealed	7.62 mm	Through Hole Right Angle	125 V	25000 Steps	PC Pin	-30 ░C	85 °C	Unthreaded	On-On		Brass Nickel Plated	Standard Round
NKK Switches M2T12S4A5A30	4 A 6 A	30 V	SPDT	Process Sealed	7.62 mm	Through Hole Right Angle	125 V	25000 Steps	PC Pin	-30 ░C	85 °C	Unthreaded	On-On	Non-Illuminated	Brass Nickel Plated	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPDT Through Hole, Right Angle

Technical documentation and resources
