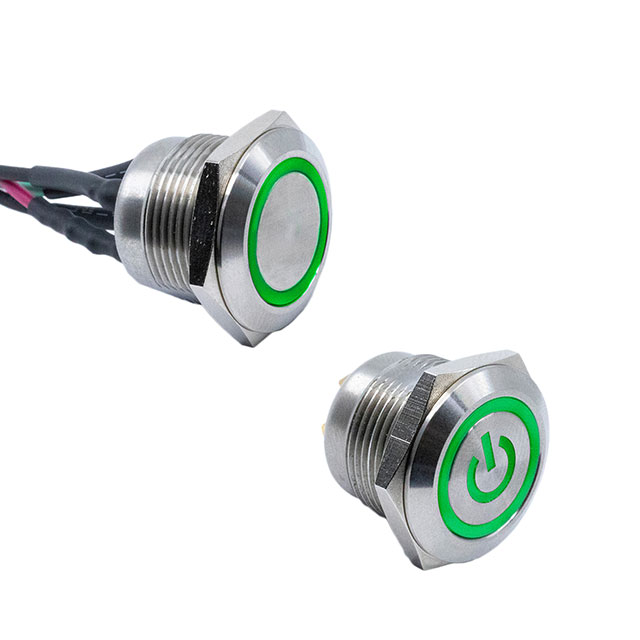

SV4F23SS-6G1
ActiveE-Switch
SWITCH PB SPST-NO 2A 36V
Deep-Dive with AI
Search across all available documentation for this part.
SV4F23SS-6G1
ActiveE-Switch
SWITCH PB SPST-NO 2A 36V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SV4F23SS-6G1 |
|---|---|
| Actuator Marking | Power Symbol |
| Actuator Type | Flush, Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 2 A |
| Electrical Life | 200000 Cycles |
| Illumination Type, Color | Green/Red, LED |
| Illumination Voltage (Nominal) | 2 VDC, 3.1 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 19 mm |
| Switch Function | Off-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.06 | |
| 10 | $ 14.40 | |||
| 40 | $ 13.05 | |||
| 80 | $ 12.58 | |||
| 280 | $ 11.79 | |||
| 520 | $ 10.92 | |||
| 1000 | $ 9.79 | |||
Description
General part information
SV4F23 Series
Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
