MF-NSMFLAB

Active

Bourns Inc.

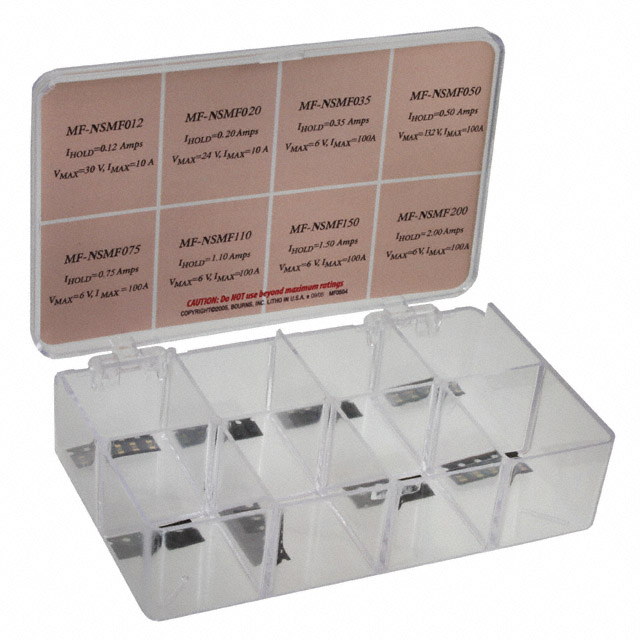

FUSE KIT PTC RST 0.12-2A 40PC

Search across all available documentation for this part.

Active

Bourns Inc.

FUSE KIT PTC RST 0.12-2A 40PC

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Packages Included	Packages Included	Voltage Rating [Max]	Voltage Rating [Min]	Quantity	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Kit Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Qualification	Current - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Time to Trip	Package / Case	Package / Case	Package / Case	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Max [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Current - Hold (Ih) (Max) [Max]	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]	Type	Thickness (Max) [Max]
Bourns Inc. MF-NSMFLAB	Surface Mount	3216 Metric	1206	30 V	6 VDC	40 Pieces	2 A	0.12 A	PTC Resettable
Bourns Inc. MF-NSMF075-2	Surface Mount									0.7 mm	0.028 "	AEC-Q200	100 A	400 mOhms	100 ms	3216 Metric	1206	Concave	Automotive	85 °C	-40 °C	6 V	0.063 in	1.6 mm	0.126 "	3.2 mm	cUL cURus TUV	750 mA	1.5 A	100 mOhms	Polymeric
Bourns Inc. MF-NSMF025X-2	Surface Mount										0.85 mm	AEC-Q200	20 A	2.3 Ohms	80 ms	3216 Metric	1206	Concave	Automotive	85 °C	-40 °C	16 V	0.063 in	1.6 mm	0.126 "	3.2 mm	cUL cURus TUV	250 mA	500 mA	450 mOhms	Polymeric	0.033 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PTC Resettable Fuse Kit 0.12 ~ 2A 6 ~ 30VDC Surface Mount 40 Pieces (8 Values - 5 Each)
