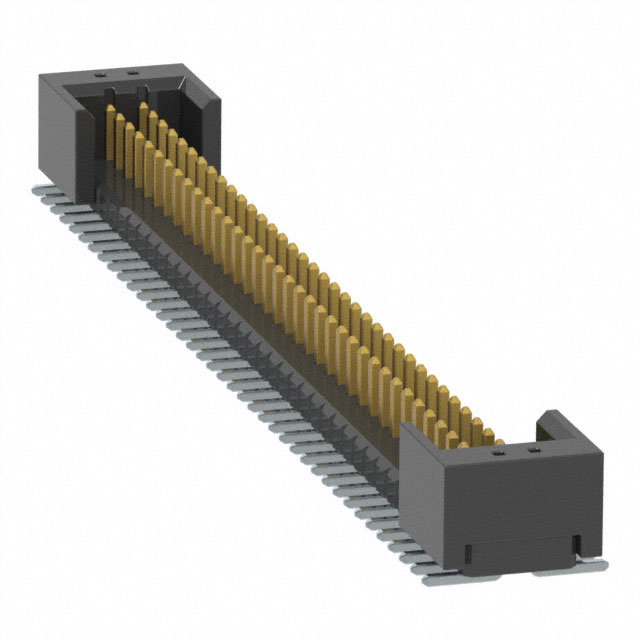

FTM-135-03-L-DV-S-P
ActiveSamtec Inc.
CONN HEADER SMD 70POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
FTM-135-03-L-DV-S-P
ActiveSamtec Inc.
CONN HEADER SMD 70POS 1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FTM-135-03-L-DV-S-P |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 0.065 in |
| Contact Length - Mating | 1.65 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.8 A per Contact |
| Fastening Type | Push-Pull |
| Features | End Shrouds, Pick and Place |
| Insulation Color | Black |
| Insulation Height | 0.038 in |
| Insulation Height | 0.97 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
FTM-135 Series
| Part | Number of Rows | Fastening Type | Contact Material | Termination | Insulation Material | Shrouding | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Features | Contact Shape | Connector Type | Contact Finish - Mating | Contact Length - Mating [x] | Contact Length - Mating [x] | Insulation Color | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 2 | Push-Pull | Phosphor Bronze | Solder | Liquid Crystal Polymer (LCP) | Unshrouded | 0.038 in | 0.97 mm | 0.039 in | 1 mm | 2.8 A per Contact | End Shrouds Pick and Place | Square | Cuttable Header | Gold | 1.9 mm | 0.075 in | Black | 70 | 3 µin | 0.076 µm | Tin | -55 °C | 125 °C | All | Surface Mount | 0.039 " | 1 mm | Male Pin | ||
Samtec Inc. | 2 | Push-Pull | Phosphor Bronze | Solder | Liquid Crystal Polymer (LCP) | Unshrouded | 0.038 in | 0.97 mm | 0.039 in | 1 mm | 2.8 A per Contact | Square | Cuttable Header | Gold | Black | 70 | 3 µin | 0.076 µm | Tin | -55 °C | 125 °C | All | Surface Mount | 0.039 " | 1 mm | Male Pin | 0.065 in | 1.65 mm | |||
Samtec Inc. | 2 | Push-Pull | Phosphor Bronze | Solder | Liquid Crystal Polymer (LCP) | Unshrouded | 0.038 in | 0.97 mm | 0.039 in | 1 mm | 2.8 A per Contact | Square | Cuttable Header | Gold | 1.9 mm | 0.075 in | Black | 70 | Tin | -55 °C | 125 °C | All | Surface Mount | 0.039 " | 1 mm | Male Pin | |||||
Samtec Inc. | 2 | Push-Pull | Phosphor Bronze | Solder | Liquid Crystal Polymer (LCP) | Unshrouded | 0.038 in | 0.97 mm | 0.039 in | 1 mm | 2.8 A per Contact | End Shrouds Pick and Place | Square | Cuttable Header | Gold | Black | 70 | 10 çin | 0.25 çm | Tin | -55 °C | 125 °C | All | Surface Mount | 0.039 " | 1 mm | Male Pin | 0.065 in | 1.65 mm | ||
Samtec Inc. | 2 | Push-Pull | Phosphor Bronze | Solder | Liquid Crystal Polymer (LCP) | Unshrouded | 0.038 in | 0.97 mm | 0.039 in | 1 mm | 2.8 A per Contact | Square | Cuttable Header | Gold | Black | 70 | 10 çin | 0.25 çm | Tin | -55 °C | 125 °C | All | Surface Mount | 0.039 " | 1 mm | Male Pin | 0.065 in | 1.65 mm | |||
Samtec Inc. | 2 | Push-Pull | Phosphor Bronze | Solder | Liquid Crystal Polymer (LCP) | Unshrouded | 0.038 in | 0.97 mm | 0.039 in | 1 mm | 2.8 A per Contact | Square | Cuttable Header | Gold | Black | 70 | 3 µin | 0.076 µm | Tin | -55 °C | 125 °C | All | Surface Mount | 0.039 " | 1 mm | Male Pin | 0.065 in | 1.65 mm | |||
Samtec Inc. | 2 | Push-Pull | Phosphor Bronze | Solder | Liquid Crystal Polymer (LCP) | Unshrouded | 0.038 in | 0.97 mm | 0.039 in | 1 mm | 2.8 A per Contact | Square | Cuttable Header | Gold | Black | 70 | 10 çin | 0.25 çm | Tin | -55 °C | 125 °C | All | Surface Mount | 0.039 " | 1 mm | Male Pin | 0.065 in | 1.65 mm | |||
Samtec Inc. | 2 | Push-Pull | Phosphor Bronze | Solder | Liquid Crystal Polymer (LCP) | Unshrouded | 0.038 in | 0.97 mm | 0.039 in | 1 mm | 2.8 A per Contact | End Shrouds | Square | Cuttable Header | Gold | 1.9 mm | 0.075 in | Black | 70 | 10 çin | 0.25 çm | Tin | -55 °C | 125 °C | All | Surface Mount | 0.039 " | 1 mm | Male Pin | ||
Samtec Inc. | 2 | Push-Pull | Phosphor Bronze | Solder | Liquid Crystal Polymer (LCP) | Unshrouded | 0.038 in | 0.97 mm | 0.039 in | 1 mm | 2.8 A per Contact | Pick and Place | Square | Cuttable Header | Gold | 1.9 mm | 0.075 in | Black | 70 | 10 çin | 0.25 çm | Tin | -55 °C | 125 °C | All | Surface Mount | 0.039 " | 1 mm | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.47 | |
| 10 | $ 9.28 | |||
| 100 | $ 8.38 | |||
Description
General part information
FTM-135 Series
Connector Header Surface Mount 70 position 0.039" (1.00mm)
