0801699

Active

Phoenix Contact

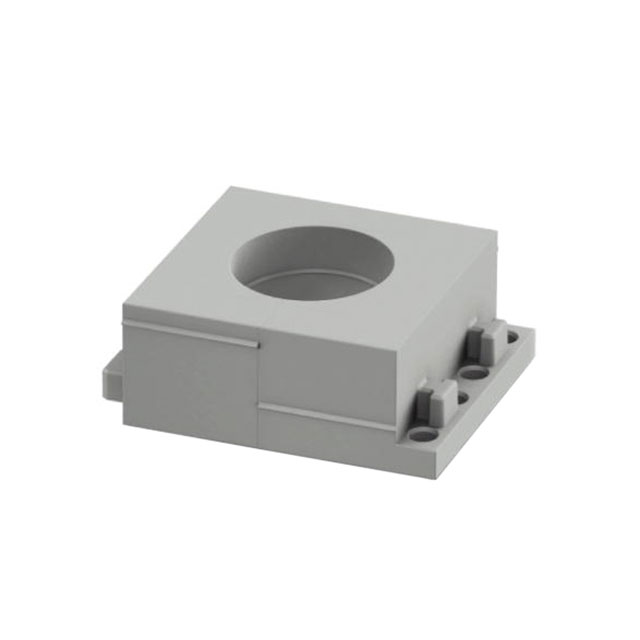

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0801699

Active

Phoenix Contact

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.39

Description

General part information

CES-LTPG Series

Frame Grommet 0.984" ~ 1.024" (25.00mm ~ 26.00mm) Gray

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0801699	CES-LTPG Series

Accessory Type	-	Hole Plug
Bushing, Grommet Type	Frame Grommet	Frame Grommet
Color	Gray	Gray
Diameter - Inside	-	31 - 32 mm
Diameter - Inside	-	18 - 24 mm
Diameter - Inside [Max] [diameter]	1.024 in	0.591 - 1.26 in
Diameter - Inside [Max] [diameter]	26 mm	15 - 31 mm
Diameter - Inside [Min] [diameter]	25 mm	14 - 30 mm
Diameter - Inside [Min] [diameter]	0.984 "	0.551 - 1.22 in
Features	Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch	Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch, IP54
For Use With/Related Products	Wires, Cable	Wires, Cable, PLUSCON CES Sealing Frames
Material	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS, Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0

CES-LTPG Series

FRAME GROMMET ELASTOMER GRAY

Part	Features	Diameter - Inside	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Material	Material Flammability Rating	For Use With/Related Products	Color	Bushing, Grommet Type	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]
Phoenix Contact 0801706	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	31 mm, 32 mm	1.22 in	1.26 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet
Phoenix Contact 0801690	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.669 in	0.709 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet	18 mm	17 mm
Phoenix Contact 0801705	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		1.181 "	1.22 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		30 mm	31 mm
Phoenix Contact 0801697	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.906 in	0.945 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet	24 mm	23 mm
Phoenix Contact 0801698	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.945 "	0.984 "	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		24 mm	25 mm
Phoenix Contact 0801699	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.984 "	1.024 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		25 mm	26 mm
Phoenix Contact 0801691	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.709 "	0.748 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		18 mm	19 mm
Phoenix Contact 0801687	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.551 in	0.591 in	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		14 mm	15 mm
Phoenix Contact 0801702	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		1.102 "	1.142 "	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		28 mm	29 mm
Phoenix Contact 0801693	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant		0.787 "	0.827 "	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	UL94 V-0	Cable, Wires	Gray	Frame Grommet		20 mm	21 mm
