LDD-500 Series

Part	Type	Voltage - Output (Max)	Voltage - Output (Min)	Number of Outputs	Voltage - Input (Max)	Voltage - Input (Min)	Efficiency	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Operating Temperature (Min)	Operating Temperature (Max)	Dimming	Package Leads	Package Name	Topology	Features	Mounting Type	Approval Agency	Current - Output (Max)	Package / Case	Termination Style	Ratings

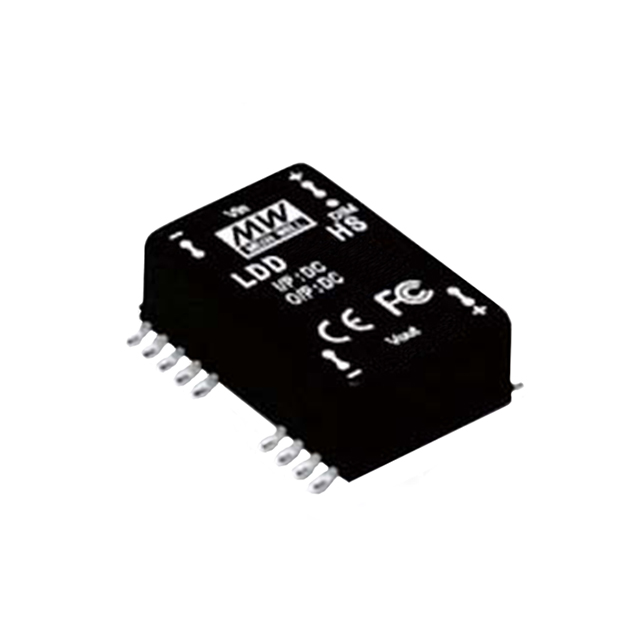

MEAN WELL USA Inc. LDD-500HS	Constant Current	52 V	2 V	1	56 V	9 V	96 %	0.8 in	0.45 in	1.25 in	-40 °C	85 °C	PWM	18 Leads	24-SMD Module	Buck	OTP Remote On/Off SCP	Surface Mount	CE	500 mA
MEAN WELL USA Inc. LDD-500H	Constant Current	52 V	2 V	1	56 V	9 V	97 %	0.8 in	0.48 in	1.25 in	-40 °C	85 °C	PWM	9 Leads	24-DIP Module	Buck	OTP Remote On/Off SCP	Through Hole	CE	500 mA
MEAN WELL USA Inc. LDD-500LS	Constant Current	28 V	2 V	1	32 V	9 V	95 %	0.41 in	0.37 in	1 in	-40 °C	85 °C	PWM			Buck	OTP Remote On/Off SCP	Surface Mount	CE	500 mA	16-SMD Module
MEAN WELL USA Inc. LDD-500HW	Constant Current	52 V	2 V	1	56 V	9 V	97 %	0.8 in	0.48 in	1.25 in	-40 °C	85 °C	PWM			Buck	OTP Remote On/Off SCP	Chassis Mount	CE	500 mA		Wire Leads	IP67
