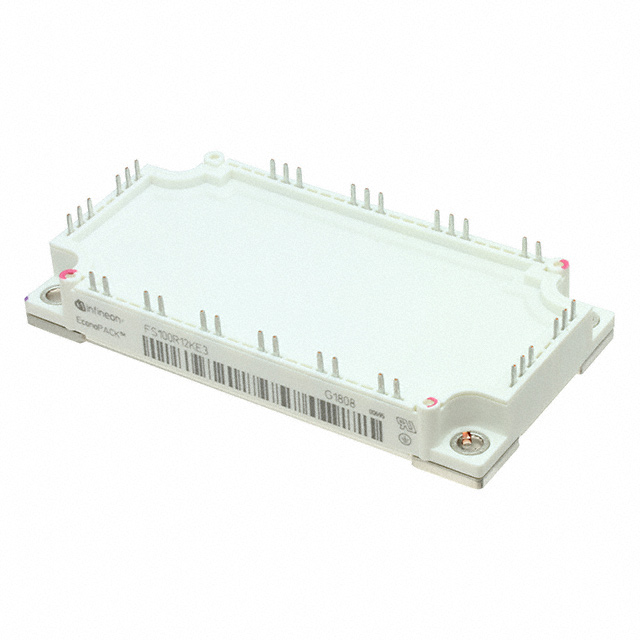

FS100R12KE3BOSA1

NRND

Infineon Technologies

IGBT MODULE, SIX PACK [FULL BRIDGE], 140 A, 1.7 V, 480 W, 125 °C, MODULE

Search across all available documentation for this part.

NRND

Infineon Technologies

IGBT MODULE, SIX PACK [FULL BRIDGE], 140 A, 1.7 V, 480 W, 125 °C, MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	FS100R12KE3BOSA1

Configuration	Single
Current - Collector (Ic) (Max) [Max]	140 A
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	NPT
Input	Standard
Input Capacitance (Cies) @ Vce	7.1 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	480 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Supplier Device Package	Input Capacitance (Cies) @ Vce	IGBT Type	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Input	Power - Max [Max]	Mounting Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Cutoff (Max) [Max]	Operating Temperature
Infineon Technologies FS100R12KT4B11BOSA1	Module	6.3 nF	Trench Field Stop	2.1 V	1200 V	100 A	Module	Standard	515 W	Chassis Mount	Three Phase Inverter	150 °C	-40 °C	1 mA
Infineon Technologies FS100R12KE3_B3	Module	7.1 nF	NPT	2.15 V	1200 V	140 A	Module	Standard	480 W	Chassis Mount	Three Phase Inverter			5 mA	150 °C
Infineon Technologies FS100R12KE3BOSA1	Module	7.1 nF	NPT	2.15 V	1200 V	140 A	Module	Standard	480 W	Chassis Mount	Single	125 ¯C	-40 °C	5 mA
Infineon Technologies FS100R12N2T4BPSA1	AG-ECONO2-6	6.3 nF	Trench Field Stop	2.1 V	1200 V	100 A	Module	Standard	20 mW	Chassis Mount	Three Phase Inverter			1 mA
Infineon Technologies FS100R12KT4PBPSA1
Infineon Technologies FS100R12KT4PB11BPSA1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EconoPACK™ 31200 V, 100 A sixpackIGBT modulewith TRENCHSTOP™ IGBT3 and NTC.
