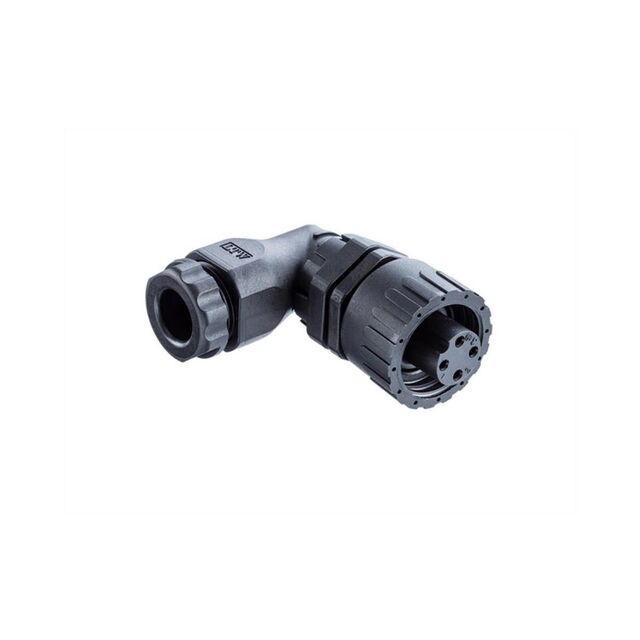

PWG-04BFFB-SR7001
ActiveAmphenol LTW
POWER 16A 90ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PWG-04BFFB-SR7001
ActiveAmphenol LTW
POWER 16A 90ANGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PWG-04BFFB-SR7001 |
|---|---|
| Cable Opening [Max] [custom] | 12.5 mm |
| Cable Opening [Max] [custom] | 0.492 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 16 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.20 | |
| 10 | $ 19.44 | |||
| 30 | $ 18.60 | |||
| 50 | $ 18.00 | |||
| 100 | $ 17.40 | |||
| 250 | $ 16.44 | |||
| 500 | $ 15.96 | |||
Description
General part information
PWG-04BFFB Series
4 Position Circular Connector Plug, Female Sockets Screw
