6771412324F

Active

DIALIGHT

7MM HB/B PMI-6VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HB/B PMI-6VDC W/O-RING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	125	$ 7.40

General part information

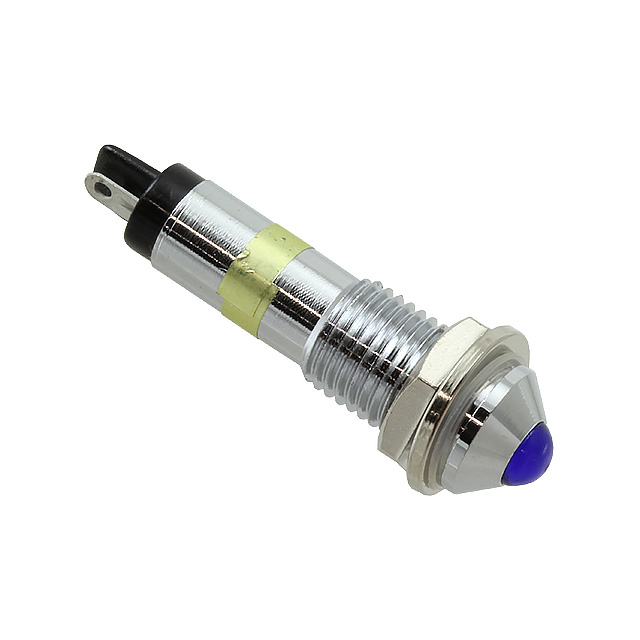

LED Panel Indicator Blue 6V 30mA Solder Lug

Technical documentation and resources

No documents available

Specification	6771412324F	6771412 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Blue	Blue
Lens Size [diameter]	4 mm	4 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	700 mcd	700 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	25 °
Voltage	6 V	6 - 12 V

Part	Current	Lamp Color	Lens Style	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle	Ratings	Lens Size [diameter]	Ingress Protection	Type	Termination Style	Voltage	Millicandela Rating	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6771412334F	30 mA	Blue	Round with Domed Top	Round	7.2 mm	0.28 in	25 °	DC	4 mm	IP66, NEMA 4X	LED	Solder Lug	12 V
DIALIGHT 6771412324F	30 mA	Blue	Round with Domed Top	Round				DC	4 mm	IP66, NEMA 4X	LED	Solder Lug	6 V	700 mcd	7.11 mm	0.28 "
