PXE20-24WD05

Active

TDK-LAMBDA

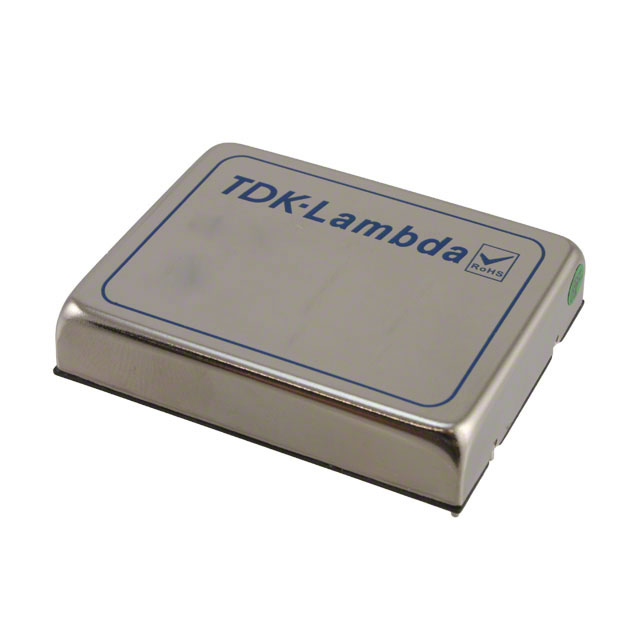

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 20 W, 2 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

PXE20-24WD05

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 20 W, 2 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXE20-24WD05

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 A
Current - Output (Max) [Max]	2 A
Efficiency	79 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 7 Leads
Power (Watts)	20 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	40.6 mm
Size / Dimension [y]	1.6 "
Size / Dimension [z]	0.4 "
Size / Dimension [z]	8.6 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

PXE20 Series

Part	Number of Outputs	Type	Applications	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Power (Watts)	Voltage - Output 2	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Efficiency	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
TDK-LAMBDA PXE20-48WD05	2	Isolated Module	ITE (Commercial)	2 A	2 A	5 V	1.6 kV	20 W	-5 V	Through Hole	8-DIP Module 7 Leads	100 °C	-40 °C	18 V	75 V	2 in	40.6 mm	0.4 "	50.8 mm	1.6 "	8.6 mm	Remote On/Off	79 %
TDK-LAMBDA PXE20-48WD12	2	Isolated Module	ITE (Commercial)			12 V	1.6 kV	20 W	-12 V	Through Hole	8-DIP Module 7 Leads	100 °C	-40 °C	18 V	75 V	2 in	40.6 mm	0.4 "	50.8 mm	1.6 "	8.6 mm	Remote On/Off	83 %	833 mA	833 mA
TDK-LAMBDA PXE20-24WD05	2	Isolated Module	ITE (Commercial)	2 A	2 A	5 V	1.6 kV	20 W	-5 V	Through Hole	8-DIP Module 7 Leads	100 °C	-40 °C	9 V	36 V	2 in	40.6 mm	0.4 "	50.8 mm	1.6 "	8.6 mm	Remote On/Off	79 %
TDK-LAMBDA PXE20-24WD12	2	Isolated Module	ITE (Commercial)			12 V	1.6 kV	20 W	-12 V	Through Hole	8-DIP Module 7 Leads	100 °C	-40 °C	9 V	36 V	2 in	40.6 mm	0.4 "	50.8 mm	1.6 "	8.6 mm	Remote On/Off	81 %	833 mA	833 mA
TDK-LAMBDA PXE20-24WS15	1	Isolated Module	ITE (Commercial)		1.33 A	15 V	1.6 kV	20 W		Through Hole	8-DIP Module 6 Leads	100 °C	-40 °C	9 V	36 V	2 in	40.6 mm	0.4 "	50.8 mm	1.6 "	8.6 mm	Remote On/Off	81 %
TDK-LAMBDA PXE20-48WD15	2	Isolated Module	ITE (Commercial)			15 V	1.6 kV	20 W	-15 V	Through Hole	8-DIP Module 7 Leads	100 °C	-40 °C	18 V	75 V	2 in	40.6 mm	0.4 "	50.8 mm	1.6 "	8.6 mm	Remote On/Off	84 %		666 mA	0.666 A
TDK-LAMBDA PXE20-48WS12	1	Isolated Module	ITE (Commercial)		1.67 A	12 V	1.6 kV	20 W		Through Hole	8-DIP Module 6 Leads	100 °C	-40 °C	18 V	75 V	2 in	40.6 mm	0.4 "	50.8 mm	1.6 "	8.6 mm	Remote On/Off	81 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.03
		10	$ 80.56
		25	$ 75.33
		50	$ 70.90
Newark	Each	1	$ 85.03
		10	$ 80.56
		25	$ 75.33
		50	$ 70.90

Description

General part information

PXE20 Series

PXE20-24WD05 is a PXE20 series isolated DC-DC converter in a 2 x 1.6" (50.8 x 40.6mm) industry standard package. It also feature a six-sided, shielded metal case for reduced radiated noise, making them suitable for a wide variety of industrial, ICT (Information and Communications Technology) and test and measurement applications.
