XE1203SKC433XE2

Obsolete

Semtech Corporation

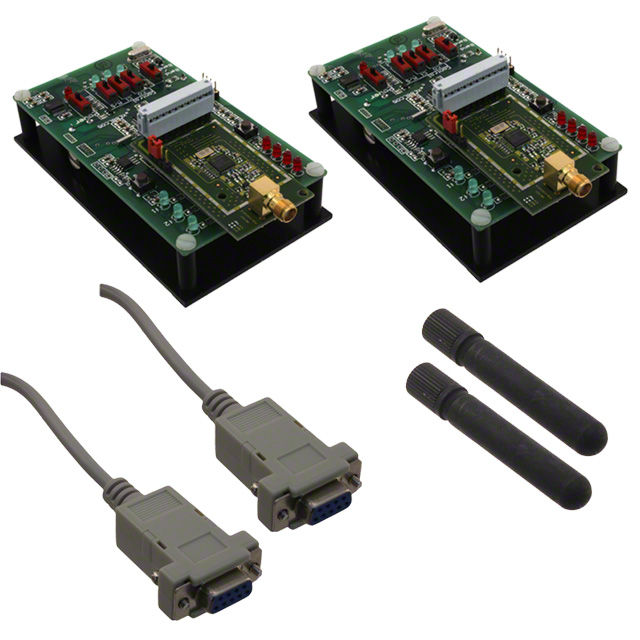

KIT STARTER FOR XE1203 433MHZ

Search across all available documentation for this part.

Obsolete

Semtech Corporation

KIT STARTER FOR XE1203 433MHZ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XE1203SKC433XE2	XE120 Series

Current - Receiving	-	14 mA
Current - Transmitting	-	62 mA
Current - Transmitting	-	33 mA
Data Rate (Max)	-	304.7 kbps
For Use With/Related Products	XE1203 (433MHz)	XE1205 (915MHz), XE1203 (915MHz), XE1203 (433MHz)
Frequency	433 MHz	433 - 915 MHz
Modulation	-	2FSK
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	48-VFQFN Exposed Pad
Power - Output	-	15 dBm
RF Family/Standard	-	General ISM < 1GHz
Sensitivity	-	-116 dBm
Serial Interfaces	-	SPI
Supplied Contents	Cable(s), Board(s)	Cable(s), Board(s)
Supplier Device Package	-	48-VQFN (8x8)
Type	Transceiver, ISM	Transceiver, ISM, TxRx Only
Voltage - Supply	-	2.4 V
Voltage - Supply	-	3.6 V

KIT STARTER FOR XE1205 915MHZ

Part	Supplied Contents	Frequency	Type	For Use With/Related Products	Mounting Type	Data Rate (Max)	Current - Transmitting [Max]	Current - Transmitting [Min]	Power - Output	Serial Interfaces	Package / Case	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	RF Family/Standard	Modulation	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package
Semtech Corporation XE1205SKC915XE1	Board(s), Cable(s)	915 MHz	Transceiver, ISM	XE1205 (915MHz)
Semtech Corporation XE1205I074TRLF		433 MHz, 868 MHz, 915 MHz	TxRx Only		Surface Mount	304.7 kbps	62 mA	33 mA	15 dBm	SPI	48-VFQFN Exposed Pad	-116 dBm	85 °C	-40 °C	14 mA	General ISM < 1GHz	2FSK	2.4 V	3.6 V	48-VQFN (8x8)
Semtech Corporation XE1203SKC915XE2	Board(s), Cable(s)	915 MHz	Transceiver, ISM	XE1203 (915MHz)
Semtech Corporation XE1203SKC433XE2	Board(s), Cable(s)	433 MHz	Transceiver, ISM	XE1203 (433MHz)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TrueRF™ XE1203 (433MHz) Transceiver, ISM 433MHz Evaluation Board

Technical documentation and resources

No documents available
