130128
ActiveTE Connectivity AMP Connectors

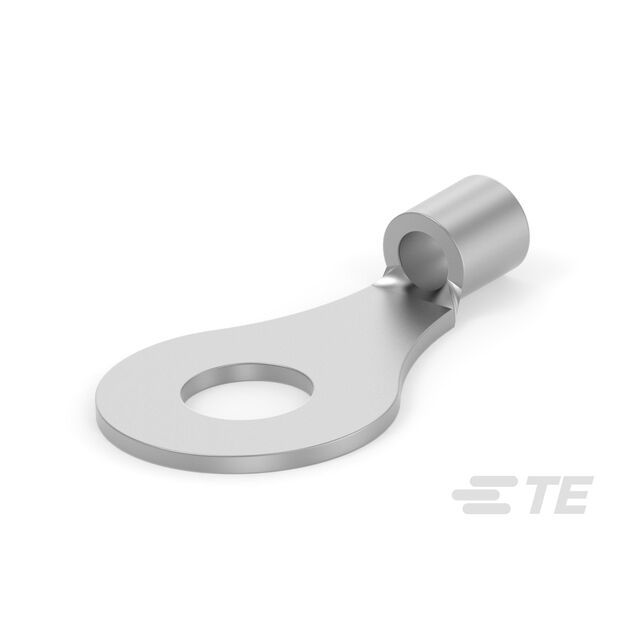

CONN RING CIRC 14-16AWG M5 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
130128
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-16AWG M5 CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 130128 | 1301 Series |
|---|---|---|
| Color | - | Blue |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated | Non-Insulated, Insulated |
| Insulation Diameter | - | 0.105 in |
| Insulation Diameter | - | 3.81 mm |
| Insulation Diameter | - | 2.67 mm |
| Insulation Diameter | - | 0.15 " |
| Length - Overall [x] | 0.86 " | 0.752 - 1.083 " |
| Length - Overall [x] | 21.84 mm | 19.1 - 27.5 mm |
| Material - Insulation | - | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud | M5 Stud |
| Terminal Type | Circular | Circular |
| Termination | Crimp | Crimp |
| Thickness | 0.031 in | 0.031 - 0.039 in |
| Thickness | 0.79 mm | 0.79 - 0.99 mm |
| Width - Outer Edges [y] | 11.91 mm | 9.5 - 11.91 mm |
| Width - Outer Edges [y] | 0.469 in | 0.374 - 0.469 in |
| Wire Gauge | - | 12 AWG |
| Wire Gauge | - | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.58 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.34 | |||
| 2500 | $ 0.33 | |||
1301 Series
CONN RING CIRC 10-12AWG M5 CRIMP
| Part | Mounting Type | Thickness | Thickness | Length - Overall [x] | Length - Overall [x] | Termination | Stud/Tab Size | Terminal Type | Contact Finish | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Width - Outer Edges [y] | Width - Outer Edges [y] | Color | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Material - Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 130191 | Free Hanging (In-Line) | 0.99 mm | 0.039 in | 0.752 " | 19.1 mm | Crimp | M5 Stud | Circular | Tin | Non-Insulated | 12 AWG | 10 AWG | Copper | 9.5 mm | 0.374 in | |||||||
TE Connectivity AMP Connectors 130114 | Free Hanging (In-Line) | 0.79 mm | 0.031 in | 1.083 in | 27.5 mm | Crimp | Circular | Tin | Insulated | Copper | 11.91 mm | 0.469 in | Blue | 0.105 in | 3.81 mm | 2.67 mm | 0.15 " | Nylon, Polyamide (PA) | ||||
TE Connectivity AMP Connectors 130128 | Free Hanging (In-Line) | 0.79 mm | 0.031 in | 0.86 " | 21.84 mm | Crimp | M5 Stud | Circular | Tin | Non-Insulated | Copper | 11.91 mm | 0.469 in | Brazed Seam, Serrated Termination |
Description
General part information
1301 Series
Ring Terminal Connector M5 Stud Circular 14-16 AWG Crimp
