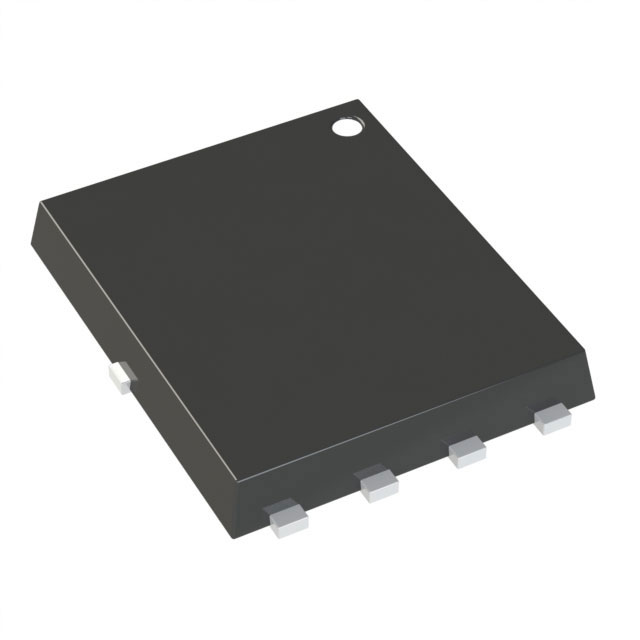

AONS62614T

Active

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 60V 39A/100A 8DFN

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 60V 39A/100A 8DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AONS62614T

Current - Continuous Drain (Id) @ 25°C	100 A, 39 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	90 nC
Input Capacitance (Ciss) (Max) @ Vds	3660 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerSMD, Flat Leads
Power Dissipation (Max)	7.5 W, 142 W
Supplier Device Package	8-DFN (5x6)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id [Max]	2.2 V

Part	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Vgs (Max)	Vgs(th) (Max) @ Id [Max]	Drain to Source Voltage (Vdss)	Mounting Type	Power Dissipation (Max)	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds
Alpha & Omega Semiconductor Inc. AONS62614T	8-DFN (5x6)	8-PowerSMD Flat Leads	-55 °C	175 ░C	MOSFET (Metal Oxide)	20 V	2.2 V	60 V	Surface Mount	7.5 W 142 W	4.5 V 10 V	90 nC	N-Channel	39 A 100 A	3660 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 60 V 39A (Ta), 100A (Tc) 7.5W (Ta), 142W (Tc) Surface Mount 8-DFN (5x6)
