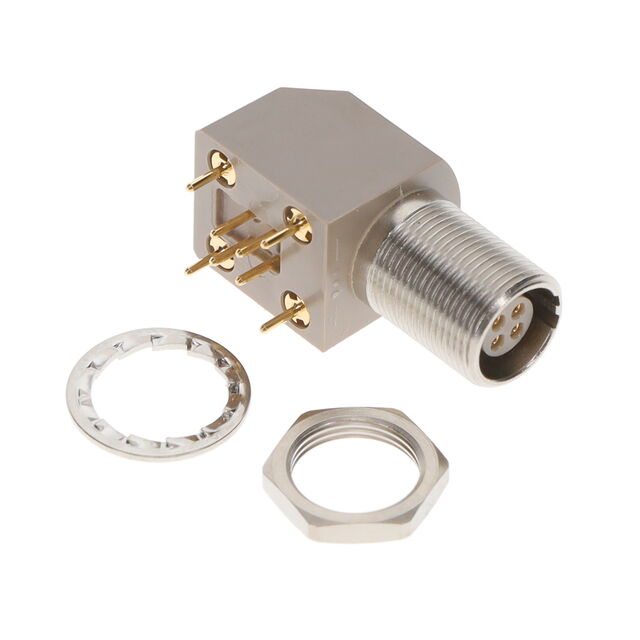

EXA.0B.304.HLN

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	EXA.0B.304.HLN

Color	Brown, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	304
Shielding	Shielded
Termination	Solder

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Shell Material	Material Flammability Rating	Connector Type	Ingress Protection	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Finish	Color	Termination	Current Rating (Amps)	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Mounting Type	Shielding	Shell Size - Insert	Contact Finish - Mating	Features	Insert Material	Contact Material
LEMO EXA.0B.304.HLN	Brass and Polyphenylene Sulfide (PPS)	UL94 V-0	Receptacle, Female Sockets	IP50	Bulkhead - Front Side Nut	-55 °C	250 °C	A	Nickel	Brown, Silver	Solder	4.5 A	Push-Pull	4	59 Áin	1.5 Ám	Metal	Panel Mount, Right Angle, Through Hole	Shielded	304	Gold	Ground	Polyetheretherketone (PEEK)	Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
