8734 0601000

Active

Belden Inc.

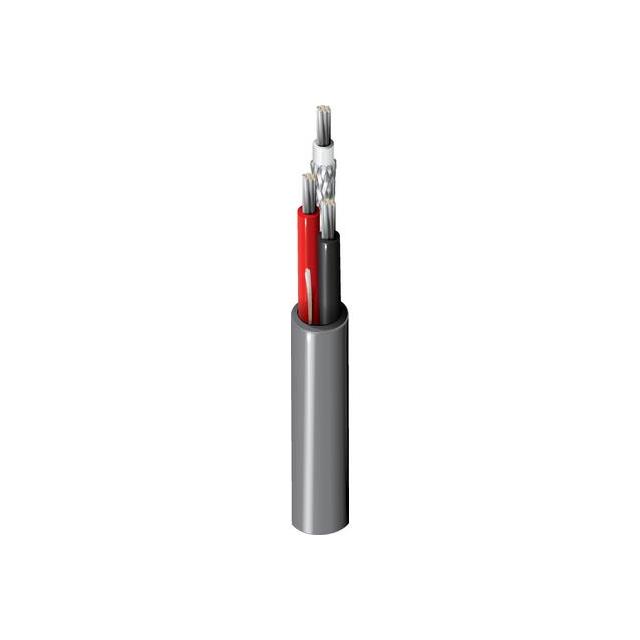

CABLE 3COND 22AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 22AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	8734 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.194 in
Jacket (Insulation) Diameter [diameter]	4.93 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2785
Shield Coverage	80 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Ratings	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Jacket Color	Number of Conductors	Shield Material	Length	Length	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Voltage	Usage
Belden Inc. 8734 0601000	UL Style 2785	Multi-Conductor	0.194 in	4.93 mm	7	30 AWG	80 %	22 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	Chrome	3	Copper Tinned	1000 ft	304.8 m	Braid	-20 C	80 C	0.025 in	0.635 mm	Poly-Vinyl Chloride (PVC)	300 V	Audio Control Instrumentation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.45

General part information

3 Conductor Multi-Conductor Cable Chrome 22 AWG Braid 1000.0' (304.8m)
