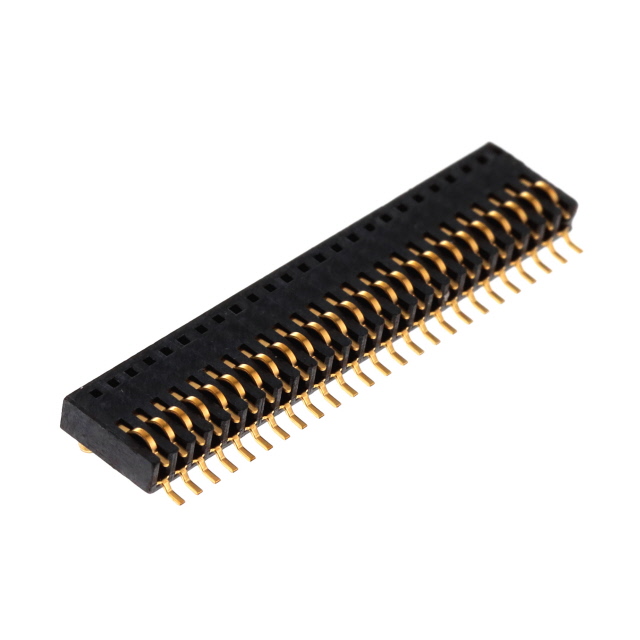

SEI-125-02-G-S-AB

Active

Samtec Inc.

CONN SPRING MOD 25POS SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SPRING MOD 25POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SEI-125-02-G-S-AB

Connector Type	Compression Contact, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material	Phosphor Bronze
Mounting Type	Surface Mount
Number of Contacts	25
Number of Rows	1
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Contact Finish Thickness	Contact Finish Thickness	Material	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Mounting Type	Number of Contacts
Samtec Inc. SEI-125-02-G-S-M	10 Áin	0.25 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25
Samtec Inc. SEI-125-02-GF-S-E	3 Áin	0.076 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25
Samtec Inc. SEI-125-02-G-S-E-AB	10 Áin	0.25 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25
Samtec Inc. SEI-125-02-GF-S-AB-TR	3 Áin	0.076 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25
Samtec Inc. SEI-125-02-G-S-AB	10 Áin	0.25 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25
Samtec Inc. SEI-125-02-GF-S-E-AT	3 Áin	0.076 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25
Samtec Inc. SEI-125-02-G-S-AT-TR	10 Áin	0.25 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25
Samtec Inc. SEI-125-02-G-S-E-AT-TR	10 Áin	0.25 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25
Samtec Inc. SEI-125-02-G-S-M-AT-TR	10 Áin	0.25 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25
Samtec Inc. SEI-125-02-G-S-AT	10 Áin	0.25 Ám	Phosphor Bronze	1	0.039 in	1 mm	Gold	Compression Contact Non-Gendered	Surface Mount	25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position Spring Compression Contact, Non-Gendered Connector Surface Mount
