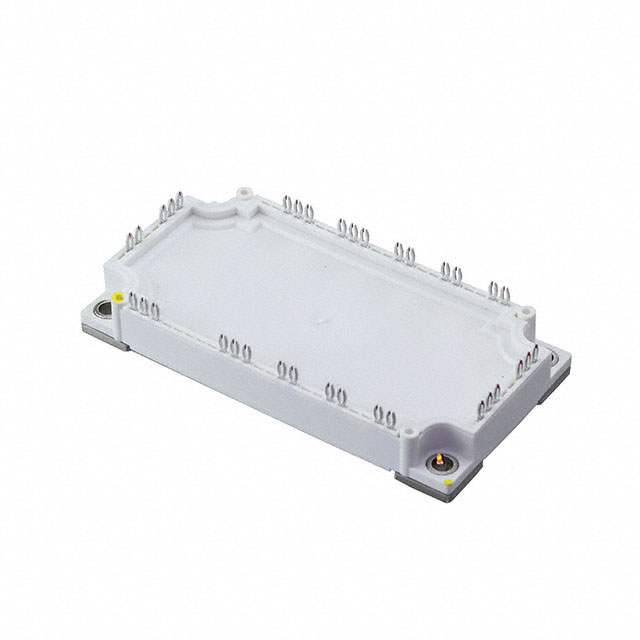

FP75R12KT4B11BOSA1

Active

Infineon Technologies

THE FP75R12KT4_B11 IS A PIM THREE PHASE INPUT RECTIFIER IGBT4 - T4 MODULE IN A ECONOPIM™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 75 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FP75R12KT4B11BOSA1

Active

Infineon Technologies

THE FP75R12KT4_B11 IS A PIM THREE PHASE INPUT RECTIFIER IGBT4 - T4 MODULE IN A ECONOPIM™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 75 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FP75R12KT4B11BOSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	75 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	4.3 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	385 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FP75R12 Series

Part	Input	Supplier Device Package	Mounting Type	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	IGBT Type	Current - Collector Cutoff (Max) [Max]	Input Capacitance (Cies) @ Vce	Configuration	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies FP75R12KT4B16BOSA1	Three Phase Bridge Rectifier	Module	Chassis Mount	2.25 V	1200 V	150 A	Module	Trench Field Stop	1 mA	4.3 nF	Three Phase Inverter	385 W
Infineon Technologies FP75R12KT4B11BOSA1	Standard	Module	Chassis Mount	2.15 V	1200 V	75 A	Module	Trench Field Stop	1 mA	4.3 nF	Three Phase Inverter	385 W	150 °C	-40 °C
Infineon Technologies FP75R12N3T4PB81BPSA1
Infineon Technologies FP75R12N2T7B11BPSA1	Three Phase Bridge Rectifier	AG-ECONO2B	Chassis Mount	1.55 V	1200 V	75 A	Module	Trench Field Stop	14 µA	15.1 nF	Three Phase Inverter	20 mW	175 °C	-40 C
Infineon Technologies FP75R12N2T7B11BPSA2	Three Phase Bridge Rectifier	AG-ECONO2B	Chassis Mount	1.55 V	1200 V	75 A	Module	Trench Field Stop	14 µA	15.1 nF	Three Phase Inverter	20 mW	175 °C	-40 C
Infineon Technologies FP75R12N2T7BPSA2	Three Phase Bridge Rectifier	AG-ECONO2B	Chassis Mount	1.55 V	1200 V	75 A	Module	Trench Field Stop	14 µA	15.1 nF	Three Phase Inverter	20 mW	175 °C	-40 C
Infineon Technologies FP75R12N2T7BPSA1	Three Phase Bridge Rectifier	AG-ECONO2B	Chassis Mount	1.55 V	1200 V	75 A	Module	Trench Field Stop	14 µA	15.1 nF	Three Phase Inverter	20 mW	175 °C	-40 C
Infineon Technologies FP75R12KT3BOSA1	Standard	Module	Chassis Mount	2.15 V	1200 V	105 A	Module	Trench Field Stop	1 mA	5.3 nF	Three Phase Inverter	355 W	125 °C	-40 °C
Infineon Technologies FP75R12N2T4B16BOSA1
Infineon Technologies FP75R12N2T4BOSA1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 146.70
		10	$ 137.41
		30	$ 132.24

Description

General part information

FP75R12 Series

EconoPIM™ 31200 V, 75 A three phase PIMIGBT modulewith fast TRENCHSTOP™ IGBT4, Emitter Controlled 4 Diode, NTC and PressFIT Contact Technology. The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. Also available as variation with Soldering connection technology:FP75R12KT4
