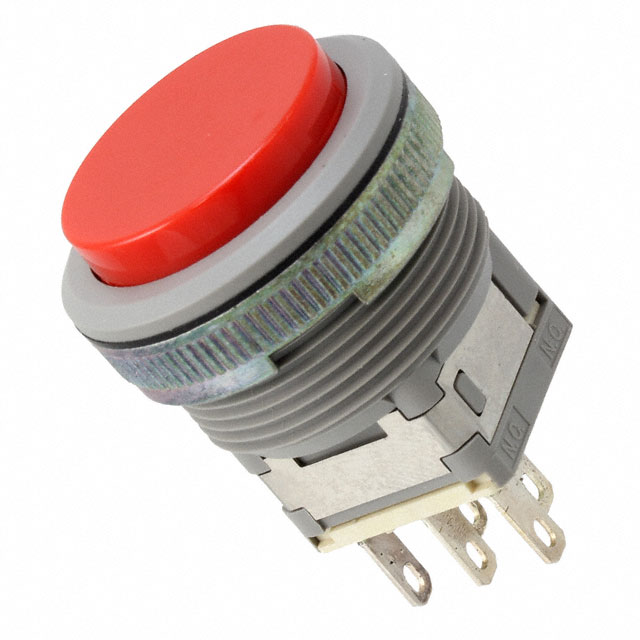

LB15WGW01-CJ

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB15WGW01-CJ

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB15WGW01-CJ

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB15WGW Series

Part	Color - Actuator/Cap	Voltage Rating - AC	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Termination Style	Termination Style	Termination Style	Mechanical Life	Actuator Type	Actuator Marking	Mounting Type	Circuit	Illumination Voltage (Nominal)	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Switch Function	Current Rating (Amps)	Type
NKK Switches LB15WGW01-5F05-JB	Clear	125 V	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	Button Round	No Marking	Panel Mount Front	SPDT	5 VDC	30 V	22 mm	Green LED	On-Mom	3 A	Illuminated Standard
NKK Switches LB15WGW01-5D-JD	Clear	125 V	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	Button Round	No Marking	Panel Mount Front	SPDT	2 VDC	30 V	22 mm	Amber LED	On-Mom	3 A	Illuminated Standard
NKK Switches LB15WGW01-5F-JB	Clear	125 V	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	Button Round	No Marking	Panel Mount Front	SPDT	2.1 VDC	30 V	22 mm	Green LED	On-Mom	3 A	Illuminated Standard
NKK Switches LB15WGW01/U		125 V	IP65 - Dust Tight Water Resistant	70 °C	-25 °C	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	Plunger for Cap	No Marking	Panel Mount Front	SPDT		30 V	22 mm		On-Mom	3 A	Standard
NKK Switches LB15WGW01-5C-JB	Clear	125 V	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	Button Round	No Marking	Panel Mount Front	SPDT	1.9 VDC	30 V	22 mm	LED Red	On-Mom	3 A	Illuminated Standard
NKK Switches LB15WGW01-6G-JB	Clear	125 V	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	Button Round	No Marking	Panel Mount Front	SPDT	3.6 VDC	30 V	22 mm	Blue LED	On-Mom	3 A	Illuminated Standard
NKK Switches LB15WGW01-CJ	Red	125 V	IP65 - Dust Tight Water Resistant	70 °C	-25 °C	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	Button Round	No Marking	Panel Mount Front	SPDT		30 V	22 mm		On-Mom	3 A	Standard
NKK Switches LB15WGW01-5C-JC	Clear (Red Filter/Diffuser)	125 V	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	100000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	Button Round	No Marking	Panel Mount Front	SPDT	1.9 VDC	30 V	22 mm	LED Red	On-Mom	3 A	Illuminated Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.36
		10	$ 14.67
		25	$ 14.02
		50	$ 13.30
		100	$ 12.82
		250	$ 12.01
		500	$ 11.12
		1000	$ 9.97
Newark	Each	1	$ 31.08
		5	$ 29.52
		10	$ 27.36
		25	$ 24.96
		50	$ 21.60
		100	$ 20.16
		250	$ 18.36

Description

General part information

LB15WGW Series

Pushbutton Switch SPDT Standard Panel Mount, Front
