E2522S.30.03
ActivePrysmian Group

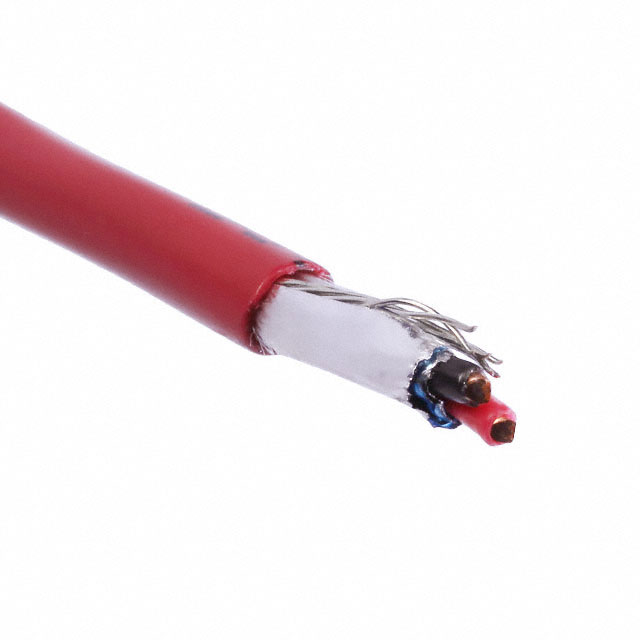

CABLE 2COND 16AWG RED SHLD
Deep-Dive with AI
Search across all available documentation for this part.
E2522S.30.03
ActivePrysmian Group
CABLE 2COND 16AWG RED SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E2522S.30.03 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand | Solid |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.57 mm |
| Jacket (Insulation) Diameter [diameter] | 0.18 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Red |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Ratings | ASTM B-3 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Alarm, Safety |
| Voltage | 300 V |
| Wire Gauge | 16 AWG |
E2522S Series
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Strand | Length | Length | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Features | Conductor Material | Shield Type | Number of Conductors | Shield Coverage | Jacket (Insulation) Material | Voltage | Cable Type | Ratings | Usage | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Prysmian Group | 0.015 in | 0.381 mm | 16 AWG | Solid | 1000 ft | 304.8 m | Flexfoil® | 4.57 mm | 0.18 in | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Copper Annealed Bare | Foil | 2 | 100 % | Poly-Vinyl Chloride (PVC) | 300 V | Multi-Conductor | ASTM B-3 | Alarm Safety | |
Prysmian Group | 0.015 in | 0.381 mm | 16 AWG | Solid | 1000 ft | 304.8 m | Flexfoil® | 4.57 mm | 0.18 in | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Copper Annealed Bare | Foil | 2 | 100 % | Poly-Vinyl Chloride (PVC) | 300 V | Multi-Conductor | ASTM B-3 | Alarm Safety | Red |
Prysmian Group | 0.015 in | 0.381 mm | 16 AWG | Solid | 1000 ft | 304.8 m | Flexfoil® | 4.57 mm | 0.18 in | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Copper Annealed Bare | Foil | 2 | 100 % | Poly-Vinyl Chloride (PVC) | 300 V | Multi-Conductor | ASTM B-3 | Alarm Safety | Blue |
Prysmian Group | 0.015 in | 0.381 mm | 16 AWG | Solid | 1000 ft | 304.8 m | Flexfoil® | 4.57 mm | 0.18 in | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Copper Annealed Bare | Foil | 2 | 100 % | Poly-Vinyl Chloride (PVC) | 300 V | Multi-Conductor | ASTM B-3 | Alarm Safety | |
Prysmian Group | 0.015 in | 0.381 mm | 16 AWG | Solid | 1000 ft | 304.8 m | Flexfoil® | 4.57 mm | 0.18 in | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Copper Annealed Bare | Foil | 2 | 100 % | Poly-Vinyl Chloride (PVC) | 300 V | Multi-Conductor | ASTM B-3 | Alarm Safety | Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 133.04 | |
Description
General part information
E2522S Series
2 Conductor Multi-Conductor Cable Red 16 AWG Foil 1000.0' (304.8m)
