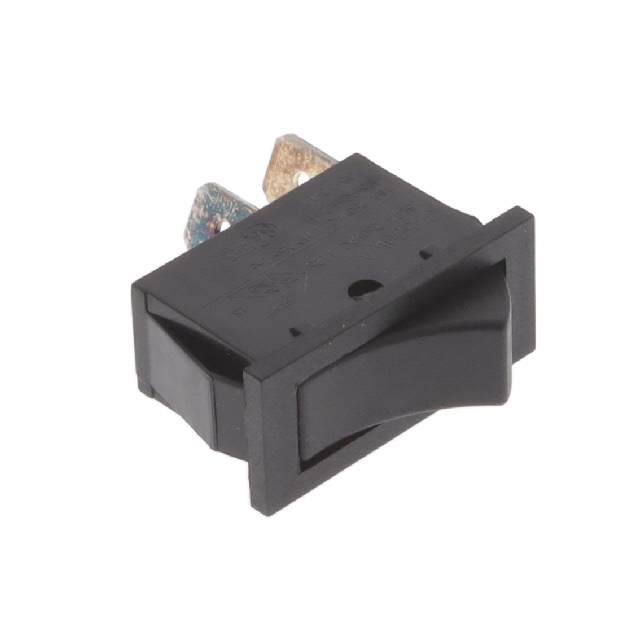

C1500WABB
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1500WABB
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 16A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1500WABB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A, 10 A |
| Ingress Protection | Splash Proof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.3 mm |
| Panel Cutout Dimensions [y] | 12.3 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.11 | |
| 10 | $ 4.56 | |||
| 25 | $ 4.31 | |||
| 50 | $ 4.16 | |||
| 100 | $ 3.96 | |||
| 250 | $ 3.78 | |||
| 500 | $ 3.45 | |||
| 1000 | $ 3.27 | |||
Description
General part information
C1500WA Series
Rocker Switch SPST 16A (AC), 10A (DC) 250 V Panel Mount, Snap-In
