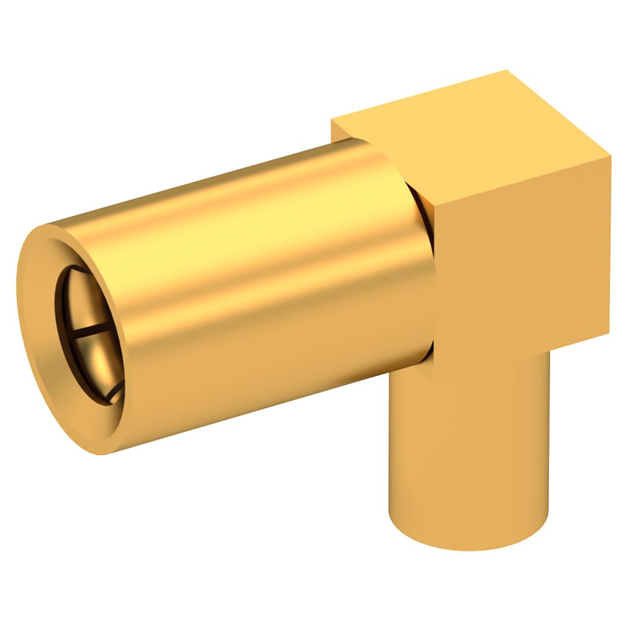

Specification	7405-1521-003

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	12.4 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	250 V

7405-1521 Series

Part	Center Contact Material	Impedance	Shield Termination	Fastening Type	Frequency - Max	Connector Style	Connector Type	Cable Group	Housing Color	Contact Termination	Mounting Type	Number of Ports	Center Contact Plating	Dielectric Material	Body Material	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Body Finish
Radiall USA, Inc. 7405-1521-003	Beryllium Copper	50 Ohm	Crimp	Snap-On	12.4 GHz	SSMB	Female Socket Plug	316 RG-174	Gold	Crimp	Free Hanging (In-Line) Right Angle	1	Gold	Polytetrafluoroethylene (PTFE)	Brass	500 cycles	-65 °C	165 °C	250 V	Gold
Radiall USA, Inc. 7405-1521-005	Beryllium Copper	50 Ohm	Crimp	Snap-On	12.4 GHz	SSMB	Female Socket Plug	RD-316	Gold	Crimp	Free Hanging (In-Line) Right Angle	1	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	500 cycles	-65 °C	165 °C	250 V	Gold
Radiall USA, Inc. 7405-1521-002	Beryllium Copper	50 Ohm	Crimp	Snap-On	12.4 GHz	SSMB	Female Socket Plug	196 RG-178	Gold	Crimp	Free Hanging (In-Line) Right Angle	1	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	500 cycles	-65 °C	165 °C	250 V	Gold
