NX72G1102Z

Active

Diodes Inc

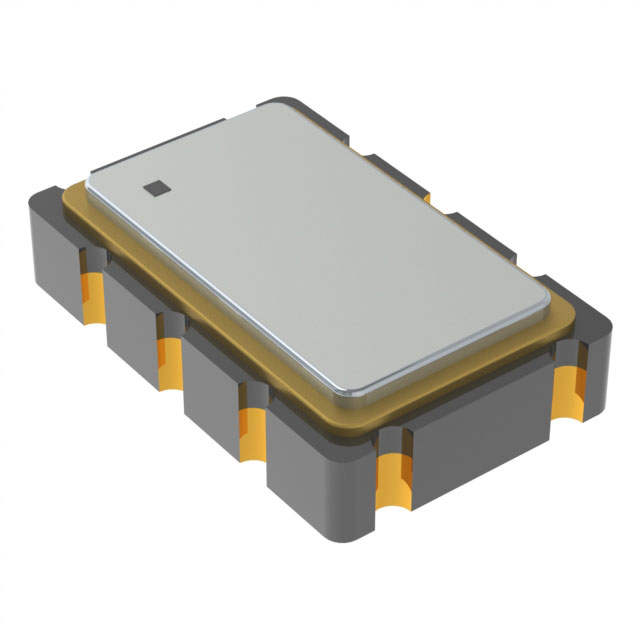

XTAL OSC XO 161.132812MHZ LVPECL

Search across all available documentation for this part.

Active

Diodes Inc

XTAL OSC XO 161.132812MHZ LVPECL

Technical Specifications

Parameters and characteristics for this part

Specification	NX72G1102Z

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	40 mA
Current - Supply (Max) [Max]	80 mA
Frequency	161.132812 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max) [Max]	0.061 in
Height - Seated (Max) [Max]	1.55 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output	LVPECL
Package / Case	6-SMD, No Lead
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Current - Supply (Disable) (Max) [Max]	Frequency	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Base Resonator	Function	Voltage - Supply	Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Package / Case	Type
Diodes Inc NX72G1102Z	40 mA	161.132812 MHz	80 mA	-20 C	70 °C	0.061 in	1.55 mm	Surface Mount	Crystal	Enable/Disable	3.3 V	LVPECL	7 mm	5 mm	0.276 "	0.197 "	50 ppm	6-SMD No Lead	XO (Standard)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.24
	Digi-Reel®	1	$ 5.24
	Tape & Reel (TR)	500	$ 3.53

General part information

161.132812 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
