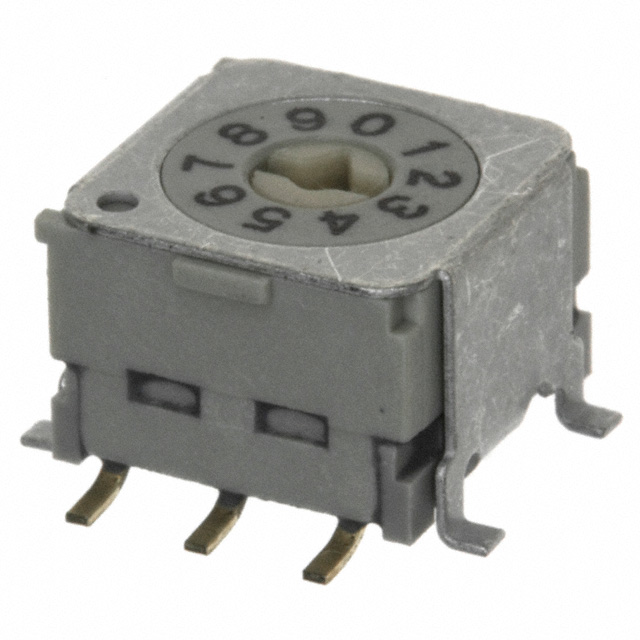

ND3FR10B-R

NKK Switches

SWITCH ROTARY DIP BCD 0.1A 5V

Search across all available documentation for this part.

NKK Switches

SWITCH ROTARY DIP BCD 0.1A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	ND3FR10B-R

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD
Contact Finish	Gold
Contact Material	Beryllium Copper
Current Rating (Amps)	100 mA
Electrical Life	20000 Steps
Features	Epoxy Sealed Terminals
Length [x]	8.13 mm
Length [x]	0.32 in
Mechanical Life	20000 Cycles
Mounting Type	Surface Mount
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	True

Part	Mechanical Life	Termination Style	Features	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Contact Material	Body Material	Number of Positions	Circuit	Length [x]	Length [x]	Mounting Type	Voltage Rating	Actuator Level	Current Rating (Amps)	Washable	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Electrical Life	Pitch
NKK Switches ND3FR10H	20000 Cycles	Gull Wing	Epoxy Sealed Terminals	Gold	-25 °C	85 °C	Rotary for Tool	Beryllium Copper	Polyamide (PA) Nylon Glass Filled	10	BCD	8.13 mm	0.32 in	Surface Mount Right Angle	5 V	Flush Recessed	100 mA		8.03 mm	0.316 in	0.05 in	1.27 mm	20000 Steps
NKK Switches ND3FR10B-R	20000 Cycles	Gull Wing	Epoxy Sealed Terminals	Gold	-25 °C	85 °C	Rotary for Tool	Beryllium Copper	Polyamide (PA) Nylon Glass Filled	10	BCD	8.13 mm	0.32 in	Surface Mount	5 V	Flush Recessed	100 mA				0.1 in	2.54 mm	20000 Steps	Full

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC
