Q-1W0180008072i

Active

Amphenol Custom Cable

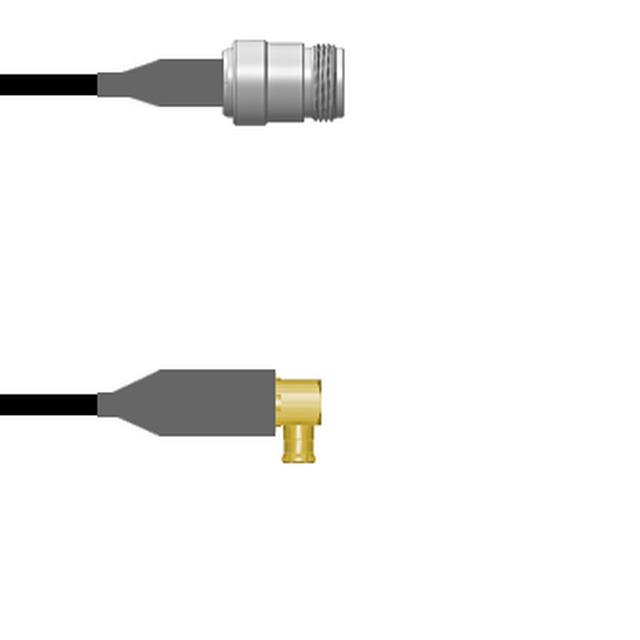

CBL ASSY MCX-NTYPE PLUG-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W0180008072i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PLUG-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W0180008072i

1st Connector	Right Angle, MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1W0180 Series

Part	Length	Length	Length	1st Connector	1st Connector Mounting Type	2nd Connector	Style	2nd Connector Mounting Type	2nd Contact Gender	Frequency - Max [Max]	1st Contact Gender	Overall Impedance	Cable Type	Color	Features
Amphenol Custom Cable Q-1W0180008048i	1200 mm	4 ft	48 in	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded
Amphenol Custom Cable Q-1W01800082.5M	2.5 m	8.2 '	98.4 in	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded
Amphenol Custom Cable Q-1W0180008036i	91.44 cm		36 in	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded
Amphenol Custom Cable Q-1W0180008108i	2.7 m	9 ft	108 in	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded
Amphenol Custom Cable Q-1W0180008072i	1.8 m	6 ft	72 in	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded
Amphenol Custom Cable Q-1W0180008.75M	750 mm		29.53 "	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded
Amphenol Custom Cable Q-1W0180008060i	1.5 m	5 ft	5 '	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded
Amphenol Custom Cable Q-1W0180008024i	609.6 mm		24 "	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded
Amphenol Custom Cable Q-1W0180008006i	152.4 mm		6 in	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded
Amphenol Custom Cable Q-1W0180008012i	304.8 mm		12 "	MCX Plug Right Angle	Free Hanging (In-Line)	N-Type Jack	MCX to N-Type	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	RG-58	Black	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 90.98
		25	$ 89.22
		50	$ 87.45
		100	$ 85.69
		250	$ 83.93

Description

General part information

Q-1W0180 Series

Cable Assembly Coaxial MCX to N-Type RG-58 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
