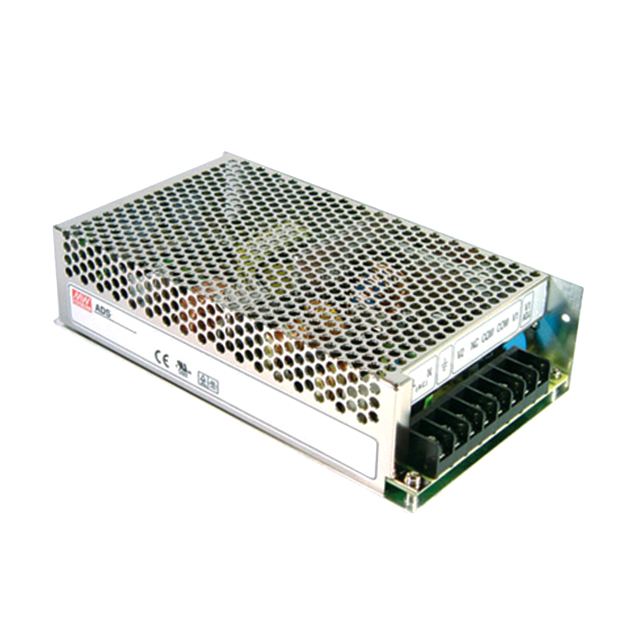

AD-155A

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 13.3V 152W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 13.3V 152W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AD-155A	AD-155 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV	CB, CE, cURus, TUV
Current - Output 1	10.5 A	2.7 - 10.5 A
Current - Output 2	500 mA	200 - 500 mA
Efficiency	80 %	80 - 84 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	2	2
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	152 W	152 - 157 W
Size / Dimension [x]	7.83 in	7.83 in
Size / Dimension [x]	199 mm	199 mm
Size / Dimension [y]	4.33 "	4.33 "
Size / Dimension [y]	110 mm	110 mm
Size / Dimension [z]	1.97 "	1.97 "
Size / Dimension [z]	50 mm	50 mm
Type	Enclosed	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC	264 - 370 VDC
Voltage - Input [Min]	88 VAC, 124 VDC	88 - 124 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	13.8 V	13.8 - 54 V
Voltage - Output 2	13.3 V	13.3 - 53.5 V

AC/DC CONVERTER 13.8V 13.3V 152W

Part	Type	Number of Outputs	Approval Agency	Efficiency	Applications	Mounting Type	Minimum Load Required	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 2	Voltage - Output 2	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Output 1	Power (Watts)
MEAN WELL USA Inc. AD-155A	Enclosed	2	CB, CE, cURus, TUV	80 %	ITE (Commercial)	Chassis Mount		10.5 A	88 VAC, 124 VDC	264 VAC, 370 VDC	500 mA	13.3 V	3000 V	4.33 "	7.83 in	199 mm	110 mm	1.97 "	50 mm	-10 °C	60 °C	Adjustable Output, Universal Input	13.8 V	152 W
MEAN WELL USA Inc. AD-155C	Enclosed	2	CB, CE, cURus, TUV	84 %	ITE (Commercial)	Chassis Mount		2.7 A	88 VAC, 124 VDC	264 VAC, 370 VDC	200 mA	53.5 V	3000 V	4.33 "	7.83 in	199 mm	110 mm	1.97 "	50 mm	-10 °C	60 °C	Adjustable Output, Universal Input	54 V	157 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 13.8V 13.3V 88 ~ 264 VAC, 124 ~ 370 VDC Input
