ERA.3S.310.CLL

Active

LEMO

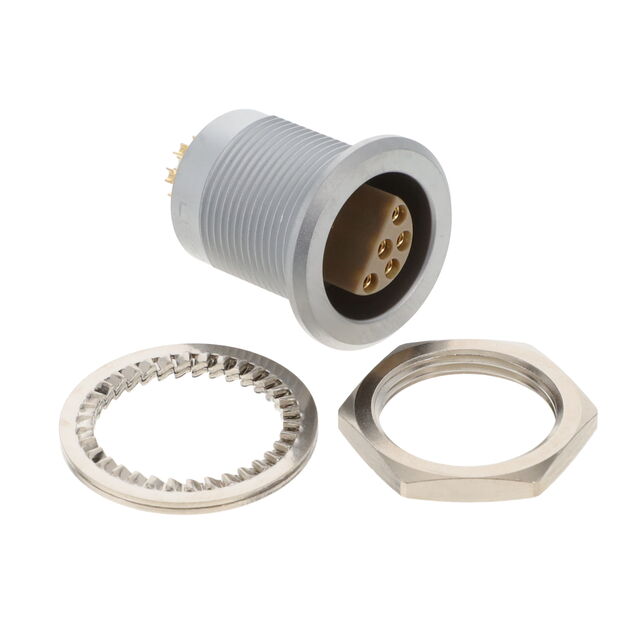

CONN CIRC RCPT 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.3S.310.CLL

Active

LEMO

CONN CIRC RCPT 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.93
		10	$ 69.67
		25	$ 66.99
		50	$ 64.76
		100	$ 61.19

Description

General part information

ERA.3S Series

10 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.3S.310.CLL	ERA.3S Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	165, 115A, RG-11A, 213, 144, 8232A, 9267, 9222, Belden 8215
Center Contact Material	-	Brass, Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial, Triaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Male Pin, Female Socket, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	9 A	3 - 43 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Fluorinated Ethylene Propylene (FEP), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	10	1 - 18
Number of Positions	-	16
Number of Positions	-	5
Number of Positions	-	1
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	310	140 - 805
Shield Termination	-	Solder
Shielding	Shielded	Shielded

ERA.3S Series

CONN CIRC RCPT 16P GOLD SLDR CUP

Part	Shielding	Fastening Type	Material Flammability Rating	Connector Type	Shell Finish	Current Rating (Amps)	Contact Finish - Mating	Number of Positions	Ingress Protection	Shell Material	Insert Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Contact Material	Mounting Feature	Shell Size - Insert	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Contact Termination	Center Contact Material	Impedance	Housing Color	Dielectric Material	Body Finish	Body Material	Includes	Mating Cycles	Connector Style	Shield Termination	Cable Group	Center Contact Plating	Number of Ports
LEMO ERA.3S.316.CLL	Shielded	Push-Pull	UL94 V-0	Female Sockets, Male Pins, Receptacle	Chrome	7 A	Gold	16	IP50	Brass	Polyetheretherketone (PEEK)	Metal	-55 °C	250 °C	Keyed	Brass, Bronze	Bulkhead - Rear Side Nut	316	Silver
LEMO ERA.3S.805.CTL1	Shielded	Push-Pull		Female Sockets, Male Pins, Receptacle	Chrome	8 A	Gold		IP50	Brass	Fluorinated Ethylene Propylene (FEP)	Metal	-55 °C	250 °C	Keyed	Brass, Bronze	Bulkhead - Rear Side Nut	805	Silver	5	1	6
LEMO ERA.3S.250.CTA		Push-Pull		Male Pin, Receptacle					IP50				-55 °C	250 °C			Bulkhead - Rear Side Nut						Solder Cup	Brass	50 Ohms	Silver	Polytetrafluoroethylene (PTFE)	Chrome	Brass	1 Connector, 1 Lockwasher, 1 Nut	1000	Coaxial	Solder	115A, 144, 165, 213, RG-11A	Gold
LEMO ERA.3S.707.CLL	Shielded	Push-Pull	UL94 V-0	Female Sockets, Male Pins, Receptacle	Chrome	3 A, 8 A	Gold		IP50	Brass	Polyetheretherketone (PEEK)	Metal	-55 °C	250 °C	Keyed	Brass, Bronze	Bulkhead - Rear Side Nut	707	Silver			8
LEMO ERA.3S.307.CLL	Shielded	Push-Pull	UL94 V-0	Female Sockets, Male Pins, Receptacle	Chrome	12 A	Gold		IP50	Brass	Polyetheretherketone (PEEK)	Metal	-55 °C	250 °C	Keyed	Brass, Bronze	Bulkhead - Rear Side Nut	307	Silver			7
LEMO ERA.3S.250.CTL		Push-Pull		Female Socket, Receptacle					IP50				-55 °C	250 °C			Bulkhead - Rear Side Nut						Solder Cup	Beryllium Copper	50 Ohms	Silver	Polytetrafluoroethylene (PTFE)	Chrome	Brass	1 Connector, 1 Lockwasher, 1 Nut	1000	Coaxial	Solder	115A, 144, 165, 213, RG-11A	Gold	1
LEMO ERA.3S.405.CTL	Shielded	Push-Pull		Receptacle, Female Sockets	Chrome	8 A	Gold		IP50	Brass	Polytetrafluoroethylene (PTFE)	Metal	-55 °C	250 °C	Keyed	Bronze	Bulkhead - Rear Side Nut	405	Silver			1
LEMO ERA.3S.805.CLL2	Shielded	Push-Pull	UL94 V-0	Female Sockets, Male Pins, Receptacle	Chrome	8 A	Gold		IP50	Brass	Polyetheretherketone (PEEK)	Metal	-55 °C	250 °C	Keyed	Brass, Bronze	Bulkhead - Rear Side Nut	805	Silver	5	1	6
LEMO ERA.3S.305.CLL	Shielded	Push-Pull	UL94 V-0	Female Sockets, Male Pins, Receptacle	Chrome	14 A, 18 A	Gold		IP50	Brass	Polyetheretherketone (PEEK)	Metal	-55 °C	250 °C	Keyed	Brass, Bronze	Bulkhead - Rear Side Nut	305	Silver
LEMO ERA.3S.410.CTL	Shielded	Push-Pull		Receptacle, Female Sockets	Chrome	7 A	Gold		IP50	Brass	Polytetrafluoroethylene (PTFE)	Metal	-55 °C	250 °C	Keyed	Bronze	Bulkhead - Rear Side Nut	410	Silver			1
