MSS2250RG

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DPDT 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	MSS2250RG

Actuator Length [x]	9.5 mm
Actuator Material	Polyoxymethylene (Acetal) (POM)
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Shorting
Current Rating (Amps)	0.4 VA
Electrical Life	15000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	15000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	600 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Switch Travel	2 mm
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Contact Finish	Voltage Rating - AC	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Travel	Switch Function	Termination Style	Contact Timing	Mechanical Life	Operating Force	Features	Actuator Length [x]	Circuit	Mounting Type	Actuator Material	Current Rating (Amps)	Contact Material	Voltage Rating - DC
TE Connectivity Raychem Cable Protection MSS2220	Silver	125 V	15000 Cycles	85 °C	-20 C	Standard	2 mm	On-On	PC Pin	Shorting	15000 Cycles	600 gf	Epoxy Sealed Terminals	5 mm	DPDT	Through Hole	Polyoxymethylene (Acetal) (POM)	300 mA	Copper Alloy
TE Connectivity Raychem Cable Protection MSS2200	Silver	125 V	15000 Cycles	85 °C	-20 C	Standard	2 mm	On-On	PC Pin	Shorting	15000 Cycles	600 gf	Epoxy Sealed Terminals	2.3 mm	DPDT	Through Hole	Polyoxymethylene (Acetal) (POM)	300 mA	Copper Alloy
TE Connectivity Raychem Cable Protection MSS2250RG	Gold	20 V	15000 Cycles	85 °C	-20 C	Standard	2 mm	On-On	PC Pin	Shorting	15000 Cycles	600 gf	Epoxy Sealed Terminals	9.5 mm	DPDT	Through Hole Right Angle	Polyoxymethylene (Acetal) (POM)	0.4 VA	Copper Alloy	20 V
TE Connectivity Raychem Cable Protection MSS2200G	Gold	20 V	15000 Cycles	85 °C	-20 C	Standard	2 mm	On-On	PC Pin	Shorting	15000 Cycles	600 gf	Epoxy Sealed Terminals	2.3 mm	DPDT	Through Hole	Polyoxymethylene (Acetal) (POM)	0.4 VA	Copper Alloy	20 V
TE Connectivity Raychem Cable Protection MSS2225G	Gold	20 V	15000 Cycles	85 °C	-20 C	Standard	2 mm	On-On	PC Pin	Shorting	15000 Cycles	600 gf	Epoxy Sealed Terminals	5.41 mm	DPDT	Through Hole	Polyoxymethylene (Acetal) (POM)	0.4 VA	Copper Alloy	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

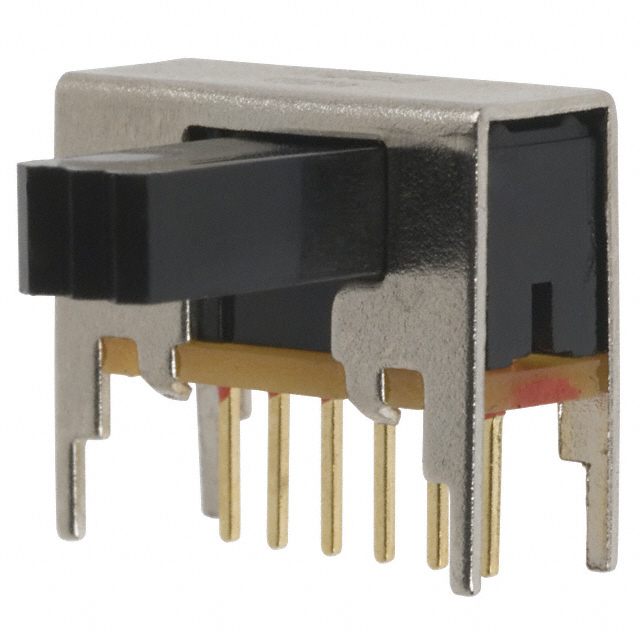

Slide Switch DPDT Through Hole, Right Angle
