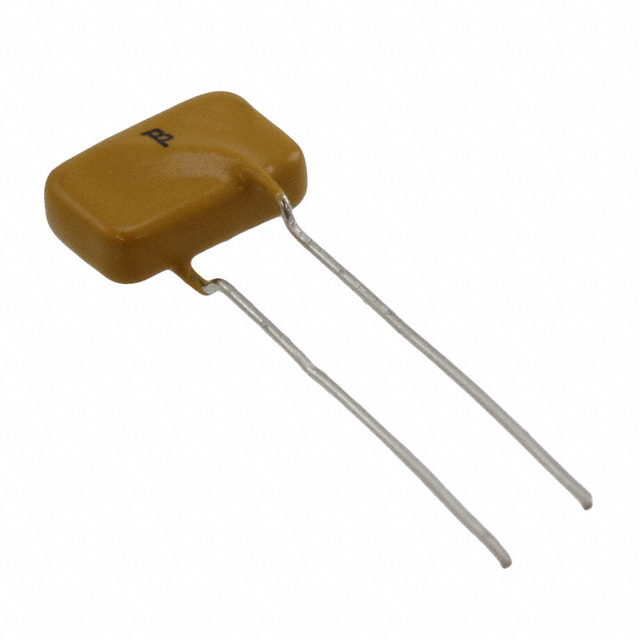

MF-R015/600-F-2

Obsolete

Bourns Inc.

PTC RESET FUSE 250V 150MA RADIAL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 250V 150MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	MF-R015/600-F-2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Max [Max]	3 A
Current - Trip (It)	300 mA
Height - Seated (Max) [Max] [z]	0.496 "
Height - Seated (Max) [Max] [z]	12.6 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Box
Resistance - Post Trip (R1) (Max) [Max]	22 Ohms
Size / Dimension [x]	13.5 mm
Size / Dimension [x]	0.531 in
Size / Dimension [y]	6 mm
Size / Dimension [y]	0.236 in
Time to Trip	5 s
Type	Polymeric
Voltage - Max	250 V
Voltage - Max	600 V

Part	Approval Agency	Current - Max [Max]	Mounting Type	Lead Spacing	Lead Spacing	Resistance - Post Trip (R1) (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Voltage - Max	Voltage - Max	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Initial (Ri) (Min) [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Time to Trip
Bourns Inc. MF-R015/600-0	cURus TUV	3 A	Through Hole	5 mm	0.197 in	22 Ohms	6 mm	13.5 mm	0.236 in	0.531 in	300 mA	150 mA	250 V	600 V	Polymeric	Radial Box	85 °C	-40 °C	6 Ohms	0.496 "	12.6 mm	5 s
Bourns Inc. MF-R015/600-F-2	cURus TUV	3 A	Through Hole	5 mm	0.197 in	22 Ohms	6 mm	13.5 mm	0.236 in	0.531 in	300 mA	150 mA	250 V	600 V	Polymeric	Radial Box	85 °C	-40 °C		0.496 "	12.6 mm	5 s
Bourns Inc. MF-R015/600-B05-0	cURus TUV	3 A	Through Hole	5 mm	0.197 in	22 Ohms	6 mm	13.5 mm	0.236 in	0.531 in	300 mA	150 mA	250 V	600 V	Polymeric	Radial Box	85 °C	-40 °C	9 Ohms	0.496 "	12.6 mm	5 s
Bourns Inc. MF-R015/600-F-0	cURus TUV	3 A	Through Hole	5 mm	0.197 in	22 Ohms	6 mm	13.5 mm	0.236 in	0.531 in	300 mA	150 mA	250 V	600 V	Polymeric	Radial Box	85 °C	-40 °C		0.496 "	12.6 mm	5 s
Bourns Inc. MF-R015/600-2-99	cURus TUV	3 A	Through Hole	5 mm	0.197 in	22 Ohms	6 mm	13.5 mm	0.236 in	0.531 in	300 mA	150 mA	250 V	600 V	Polymeric	Radial Box	85 °C	-40 °C	6 Ohms	0.496 "	12.6 mm	5 s
Bourns Inc. MF-R015/600-B-0	cURus TUV	3 A	Through Hole	5 mm	0.197 in	22 Ohms	6 mm	13.5 mm	0.236 in	0.531 in	300 mA	150 mA	250 V	600 V	Polymeric	Radial Box	85 °C	-40 °C	9 Ohms	0.496 "	12.6 mm	5 s

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Polymeric PTC Resettable Fuse 250V (600V Int) 150 mA Ih Through Hole Radial, Box
