Description
General part information
SE520 Series

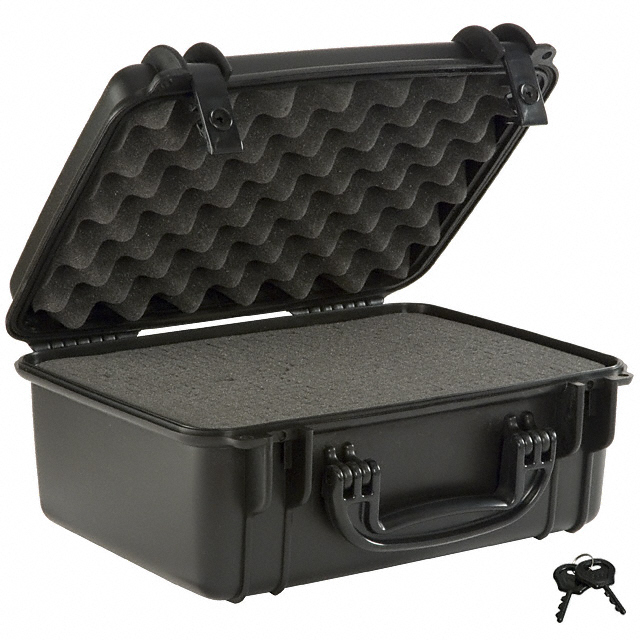

Case Plastic, Polypropylene Black Equipment Case, Hinged Lid 14.850" L x 12.150" W (377.19mm x 308.61mm) X 6.850" (173.99mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | SE520FPL,BK |
|---|---|
| Area (L x W) | 180 in² |
| Color | Black |
| Container Type | Case |
| Design | Hinged Lid, Equipment Case |
| Features | Foam Insert, Locks, Watertight/Airtight |
| Height | 6.85 in |
| Material | Polypropylene, Plastic |
| Material Flammability Rating | UL-HB75 |
| Ratings | IP67, MIL-STD 810F-512.4 |
| Size / Dimension Length | 14.85 in |
| Size / Dimension Width | 12.15 in |
| Weight | 5.2 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
