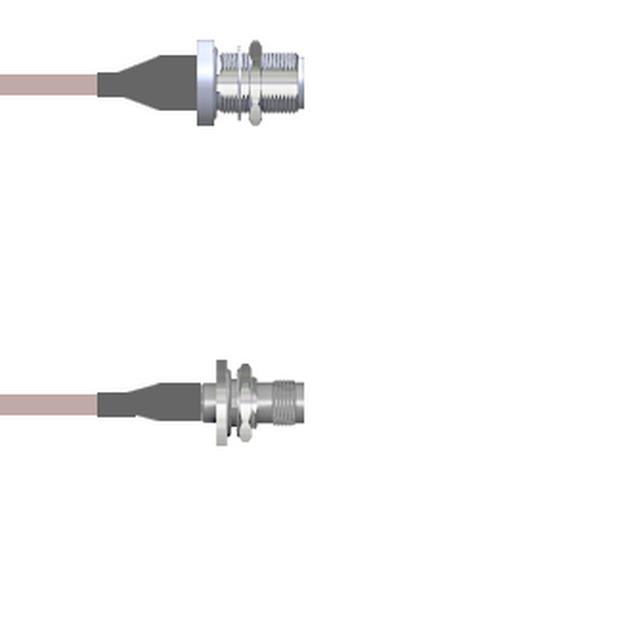

Q-2204H000R2.5M

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO TNC 8.2'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO TNC 8.2'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2204H000R2.5M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms

Part	Color	1st Contact Gender	1st Connector Mounting Type	Features	Length	Length	Length	Frequency - Max [Max]	2nd Connector Mounting Feature	2nd Contact Gender	Cable Type	2nd Connector Mounting Type	1st Connector Mounting Feature	1st Connector	Overall Impedance	2nd Connector
Amphenol Custom Cable Q-2204H000R2.5M	Copper	Female	Panel Mount	Shielded	8.2 '	98.4 in	2.5 m	11 GHz	Bulkhead - Front Side Nut	Female	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	N-Type Jack	50 Ohms	TNC Jack
Amphenol Custom Cable Q-2204H000R060i	Copper	Female	Panel Mount	Shielded	5 ft	5 '	1.5 m	11 GHz	Bulkhead - Front Side Nut	Female	RG-316 DB	Panel Mount	Bulkhead - Front Side Nut	N-Type Jack	50 Ohms	TNC Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial N-Type to TNC RG-316 DB 98.4" (2.5m) 8.2'
