1713155608

Active

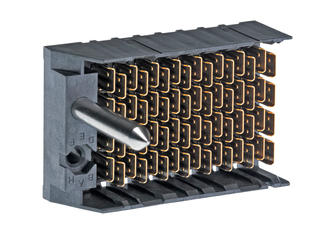

IMPEL 90 OHM, 4 PAIR VERTICAL BACKPLANE HEADER, 1.90MM PITCH, RIGHT GUIDED, 16 COLUMNS, 128 CIRCUITS, PIN LENGTH 5.50MM, PLATED THROUGH HOLE DIMENSION 0.36MM

Find alt

Alpha

1713155608

Active

Molex

IMPEL 90 OHM, 4 PAIR VERTICAL BACKPLANE HEADER, 1.90MM PITCH, RIGHT GUIDED, 16 COLUMNS, 128 CIRCUITS, PIN LENGTH 5.50MM, PLATED THROUGH HOLE DIMENSION 0.36MM

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

171315 Series

Impel 90 Ohm, 4 Pair Vertical Backplane Header, 1.90mm Pitch, Right Guided, 16 Columns, 128 Circuits, Pin Length 5.50mm, Plated Through Hole Dimension 0.36mm

Technical Specifications

Parameters and characteristics for this part

Specification	1713155608

Color	Black
Connector Style	Impel, Guide Left
Connector Type	Header, Male Pins
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Guide Pin
Mounting Type	Through Hole
Number of Columns	16
Number of Positions	128
Number of Positions Loaded	All
Number of Rows	8
Pitch	0.075 in
Termination	Press-Fit

171315 Series

Impel 90 Ohm, 4 Pair Vertical Backplane Header, 1.90mm Pitch, Right Guided, 16 Columns, 128 Circuits, Pin Length 5.50mm, Plated Through Hole Dimension 0.36mm

Part	Material Flammability Rating	Termination	Contact Finish Thickness	Number of Columns	Differential Pairs (Typical)	Contact Finish	Connector Type	Connector Style	Mounting Type	Number of Positions Loaded	Number of Positions	Number of Positions Loaded	Number of Rows	Features	Color	Pitch	Connector Usage	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Voltage Rating (Type)	Current Rating (Per Contact)	Current Rating
Molex 1713155107	UL94 V-0	Press-Fit	30 µin	10	40	Gold	Header Male Pins	Guide Right Impel	Through Hole	All
Molex 1713151107		Press-Fit	30 µin	10	40	Gold	Header Male Pins	Impel™	Through Hole		80	80	8	Shielded	Black	0.075 in	Backplane
Molex 1713151828		Press-Fit	30 µin	8	32	Gold	Blades Header Male Pins	Impel™	Through Hole	All	64		8		Black	0.075 in
Molex 1713151817		Press-Fit	30 µin	8	32	Gold	Header Male Pins	Impel™	Right Angle Through Hole	All	64		8		Black	0.075 in
Molex 1713153808	UL94 V-0	Press-Fit	30 µin	8	32	Gold	Header Male Pins	Guide Left Impel	Through Hole	All	64		8	Shielded	Black	0.075 in	Backplane	-55 °C	85 °C	29.9 VDC	DC	0.75 A
Molex 1713155608		Press-Fit	30 µin	16		Gold	Header Male Pins	Guide Left Impel	Through Hole	All	128		8	Guide Pin	Black	0.075 in	Backplane
Molex 1713155607		Press-Fit	30 µin	16	64	Gold	Header Male Pins	Impel™	Right Angle Through Hole	All	128		8	Board Guide	Black	0.075 in
Molex 1713151808		Press-Fit	30 µin	8	32	Gold	Header Male Pins	Impel™	Right Angle Through Hole	All	64		8		Black	0.075 in
Molex 1713151607	UL94 V-0	Press-Fit	30 µin	16	64	Gold	Header Male Pins	Impel™	Through Hole	All	128		8	Shielded	Black	0.075 in		-55 °C	85 °C	150 VDC
Molex 1713151837	UL94 V-0	Press-Fit	30 µin	8	32	Gold	Header Male Pins	Impel™	Right Angle Through Hole	All	64		8		Black	0.075 in		-55 °C	85 °C	150 VDC			75 mA
