EN3C10M26X

Active

Switchcraft Inc.

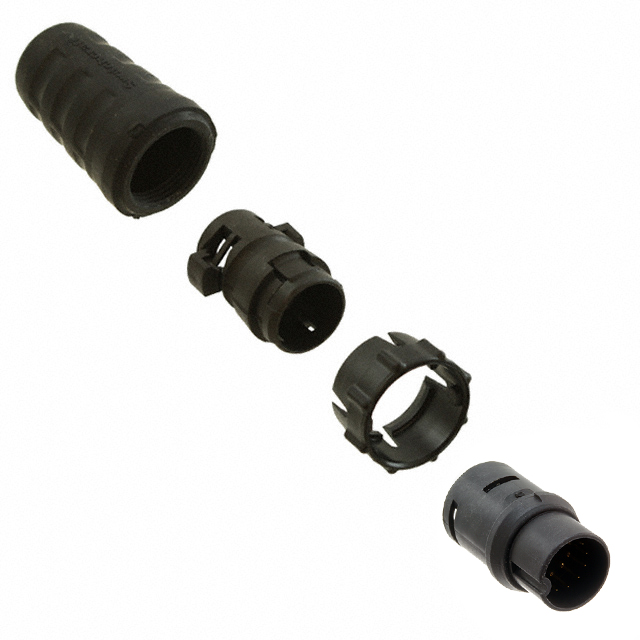

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3C10M26X

Active

Switchcraft Inc.

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C10M26X	EN3C10 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	5.84 mm
Cable Opening	-	0.38 in
Cable Opening	-	9.65 mm
Cable Opening	-	0.23 in
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Plug, Male Pins	Female Sockets, Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A	3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	10
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	250 VAC	250 VAC

EN3C10 Series

CONN PLUG FMALE 10P SOLDER CUP

Part	Mounting Type	Insert Material	Voltage Rating	Current Rating (Amps)	Orientation	Color	Contact Finish - Mating	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Ingress Protection	Applications	Material Flammability Rating	Contact Material	Fastening Type	Number of Positions	Primary Material	Features	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Switchcraft Inc. EN3C10F26X	Free Hanging (In-Line)	Elastomer	250 VAC	3 A	Keyed	Black	Gold	Female Sockets, Plug	4.06 mm, 6.73 mm	0.16 in, 0.265 in	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Copper Alloy	Bayonet Lock	10	Plastic	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	65 °C	-40 °C	Unshielded
Switchcraft Inc. EN3C10F26LX	Free Hanging (In-Line)	Elastomer	250 VAC	3 A	Keyed	Black	Gold	Female Sockets, Plug			IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Copper Alloy	Bayonet Lock	10	Plastic	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	65 °C	-40 °C	Unshielded	5.84 mm	0.38 in	9.65 mm	0.23 in
Switchcraft Inc. EN3C10M26SX	Free Hanging (In-Line)	Elastomer	250 VAC	3 A	Keyed	Black	Gold	Male Pins, Plug	4.06 mm, 6.73 mm	0.16 in, 0.265 in	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Copper Alloy	Bayonet Lock	10	Plastic	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	65 °C	-40 °C	Unshielded
Switchcraft Inc. EN3C10F26SX	Free Hanging (In-Line)	Elastomer	250 VAC	3 A	Keyed	Black	Gold	Female Sockets, Plug	4.06 mm, 6.73 mm	0.16 in, 0.265 in	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Copper Alloy	Bayonet Lock	10	Plastic	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	65 °C	-40 °C	Unshielded
Switchcraft Inc. EN3C10M26X	Free Hanging (In-Line)	Elastomer	250 VAC	3 A	Keyed	Black	Gold	Male Pins, Plug	4.06 mm, 6.73 mm	0.16 in, 0.265 in	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Copper Alloy	Bayonet Lock	10	Plastic	Backshell, Cable Clamp, Coupling Nut	Thermoplastic	65 °C	-40 °C	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.74

Description

General part information

EN3C10 Series

10 Position Circular Connector Plug, Male Pins Solder Cup
