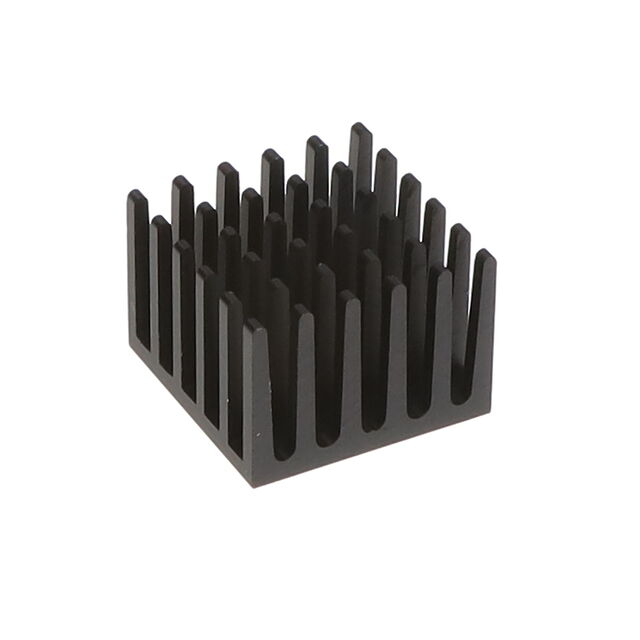

624-60ABT5

Active

Wakefield-Vette

HEATSINK FOR 21MM BGA

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK FOR 21MM BGA

Technical Specifications

Parameters and characteristics for this part

Specification	624-60ABT5

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height [z]	15.24 mm
Fin Height [z]	0.6 in
Length	0.827 in
Length	21 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	400 LFM, 10 °C/W
Type	Top Mount
Width [y]	21 mm
Width [y]	0.827 in

Part	Width [y]	Width [y]	Length	Length	Attachment Method	Thermal Resistance @ Forced Air Flow	Type	Package Cooled	Shape	Fin Height [z]	Fin Height [z]	Material	Material Finish
Wakefield-Vette 624-60ABT5	21 mm	0.827 in	0.827 in	21 mm	Thermal Tape Adhesive (Included)	10 °C/W 400 LFM	Top Mount	BGA	Pin Fins Square	15.24 mm	0.6 in	Aluminum	Black Anodized
Wakefield-Vette 624-60ABT3	21 mm	0.827 in	0.827 in	21 mm	Thermal Tape Adhesive (Included)	1 °C/W 400 LFM	Top Mount	BGA	Pin Fins Square	15.24 mm	0.6 in	Aluminum	Black Anodized
Wakefield-Vette 624-60AB	21 mm	0.827 in	0.827 in	21 mm	Thermal Tape Adhesive (Not Included)	1 °C/W 400 LFM	Top Mount	BGA	Pin Fins Square	15.24 mm	0.6 in	Aluminum	Black Anodized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Top Mount
