Specification	3-216446-1

Connector Type	RJ25, RJ11, RJ12, RJ14, Jack
Contact Finish	Gold
Contact Finish Thickness	49.3 µin
Contact Material	Phosphor Bronze
Features	Panel Lock, Panel Stops
Housing Material	Nylon, Polyamide, Glass Filled, PA
LED Color	Does Not Contain LED
Mounting Type	Bottom Entry, Through Board, Through Hole
Number of Contacts	6
Number of Ports	1
Number of Positions	6
Number of Rows	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Orientation	Vertical
Ratings	Cat3
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

216446 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Housing Material	Contact Finish Thickness	Features	Ratings	Number of Rows	Number of Contacts	Connector Type	Number of Positions	Orientation	Tab Direction	Termination	Contact Material	Number of Ports	Shielding	Contact Finish	Mounting Type	LED Color
TE Connectivity AMP Connectors 3-216446-1	-40 °C	70 °C	Glass Filled Nylon PA Polyamide	49.3 µin	Panel Lock Panel Stops	Cat3	1	6	Jack RJ11 RJ12 RJ14 RJ25	6	Vertical	User Selectable	Solder	Phosphor Bronze	1	Unshielded	Gold	Bottom Entry Through Board Through Hole	Does Not Contain LED

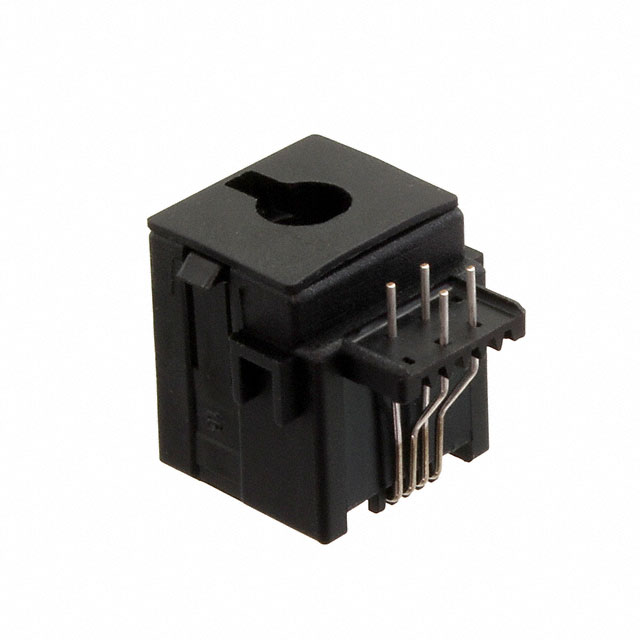

TE Connectivity AMP Connectors 3-216446-2			Glass Filled Nylon PA Polyamide	49.3 µin	Solder Retention		1	4	Jack RJ11 RJ14	6	Vertical	User Selectable	Solder	Phosphor Bronze	1	Unshielded	Gold	Surface Mount	Does Not Contain LED
TE Connectivity AMP Connectors 216446-1	-40 °C	70 °C	Glass Filled Nylon PA Polyamide	49.3 µin	Panel Lock Panel Stops	Cat3	1	6	Jack RJ11 RJ12 RJ14 RJ25	6	Vertical	User Selectable	Solder	Phosphor Bronze	1	Unshielded	Gold	Bottom Entry Through Board Through Hole	Does Not Contain LED
