M85049/38-23W

Active

Amphenol Interconnect India

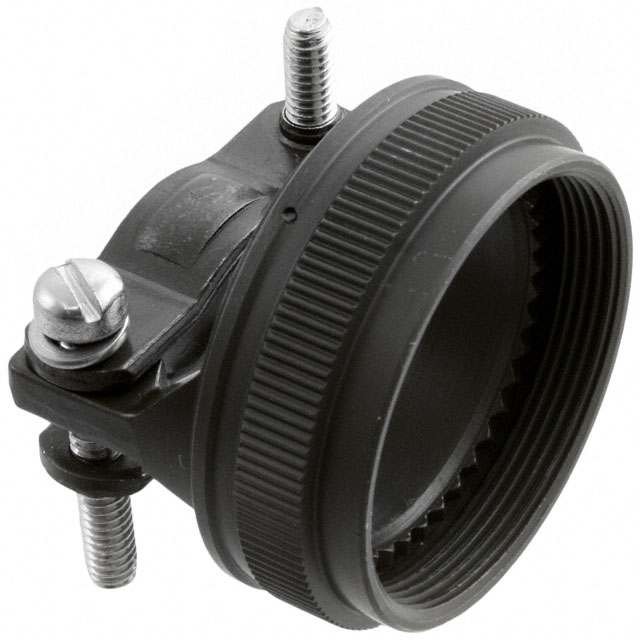

CONN CABLE CLAMP SZ23 OLIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPlating

M85049/38-23W

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ23 OLIVE

Deep-Dive with AI

DocumentsPlating

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.04
		1	$ 19.15
		10	$ 16.60
		10	$ 10.40
		25	$ 15.73
		25	$ 10.11
		50	$ 9.57
		50	$ 15.50
		100	$ 13.68
		100	$ 9.09
		250	$ 12.77
		500	$ 12.49

Description

General part information

M85049/38 Series

Olive Connector Cable Clamp 23

Documents

Technical documentation and resources

Plating

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/38-23W	M85049/38 Series

Cable Exit	180 °	180 °
Cable Opening	-	0.23 - 0.853 in
Cable Opening	-	5.84 - 21.67 mm
Cable Opening	-	3.81 - 10.62 mm
Cable Opening	-	0.15 - 0.418 in
Cable Opening	-	10.67 - 21.59 mm
Cable Opening	-	0.42 - 0.85 in
Cable Opening	-	0.28 - 0.61 in
Cable Opening	-	2.54 - 4.83 mm
Cable Opening	-	0.23 in
Cable Opening	-	0.1 in
Cable Opening	-	5.84
Cable Opening	-	0.19 in
Cable Opening	-	8.38 mm
Cable Opening	-	0.33 in
Cable Opening [custom]	0.82 in, 20.83 mm	0.82 - 20.83 in
Cable Opening [custom]	0.38 in, 9.65 mm	0.38 - 15.49 in
Color	Olive	Black, Olive, Silver
Diameter - Outside	-	41.66 mm
Diameter - Outside [diameter]	44.96 mm	1.64 - 48.01 mm
Diameter - Outside [diameter]	1.77 "	0.86 - 1.89 in
Features	Clamp Screws	Strain Relief, Clamp Screws, Self-Locking, Self Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium Nickel	Anodized, Cadmium Nickel, Electroless Nickel
Shell Size - Insert	23	9 - 25
Shell Size - Insert	-	G, F, J
Shielding	-	Unshielded
Type	Cable Clamp	Cable Clamp

M85049/38 Series

CONN CABLE CLAMP SZ21 G BLACK

Part	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	For Use With/Related Products	Features	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shielding	Color	Type	Material	Plating	Shell Size - Insert	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]
Amphenol Interconnect India M85049/38-21A	0.698 in	17.73 mm	8.71 mm	0.343 in	MIL-DTL-38999 Series III, IV	Strain Relief	180 °	38.1 mm	1.5 in	Unshielded	Black	Cable Clamp	Aluminum Alloy	Anodized	21	G
Amphenol Interconnect India M85049/38-19A	0.63 in	16 mm	8.38 mm	0.33 in	MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	35.56 mm	1.4 in	Unshielded	Black	Cable Clamp	Aluminum Alloy	Anodized	19	F
Amphenol Interconnect India M85049/38-23W					MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	44.96 mm	1.77 "		Olive	Cable Clamp	Aluminum Alloy	Cadmium Nickel	23		0.82 in, 20.83 mm	0.38 in, 9.65 mm
Amphenol Interconnect India M85049/38-15A					MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	32.51 mm	1.28 in		Black	Cable Clamp	Aluminum Alloy	Anodized	15
Amphenol Interconnect India M85049/38S11W	0.23 in	5.84 mm	3.81 mm	0.15 in	MIL-DTL-38999 Series III, IV	Clamp Screws, Self-Locking	180 °	24.9 mm	0.98 in		Olive	Cable Clamp	Aluminum Alloy	Cadmium Nickel	11
Amphenol Interconnect India M85049/38-11N	0.23 in	5.84 mm	3.81 mm	0.15 in	MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	24.9 mm	0.98 in		Silver	Cable Clamp	Aluminum Alloy	Electroless Nickel	11
Amphenol Interconnect India M85049/38S19N	0.634 in	16.1 mm	8.25 mm	0.325 in	MIL-DTL-38999 Series III, IV	Self Locking, Strain Relief	180 °	38.5 mm	1.516 "	Unshielded	Silver	Cable Clamp	Aluminum Alloy	Electroless Nickel	19	F
Amphenol Interconnect India M85049/38S25W					MIL-DTL-38999 Series III, IV	Clamp Screws, Self-Locking	180 °	48.01 mm	1.89 "		Olive	Cable Clamp	Aluminum Alloy	Cadmium Nickel	25				10.67 mm, 21.59 mm	0.42 in, 0.85 in
Amphenol Interconnect India M85049/38S17N					MIL-DTL-38999 Series III, IV	Clamp Screws, Self-Locking	180 °	35.81 mm	1.41 in		Silver	Cable Clamp	Aluminum Alloy	Electroless Nickel	17			7.11 mm, 15.49 mm			0.28 in, 0.61 in
Amphenol Interconnect India M85049/38-25W					MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	48.01 mm	1.89 "		Olive	Cable Clamp	Aluminum Alloy	Cadmium Nickel	25				10.67 mm, 21.59 mm	0.42 in, 0.85 in
