TC32MCDB
ActiveMicrochip Technology

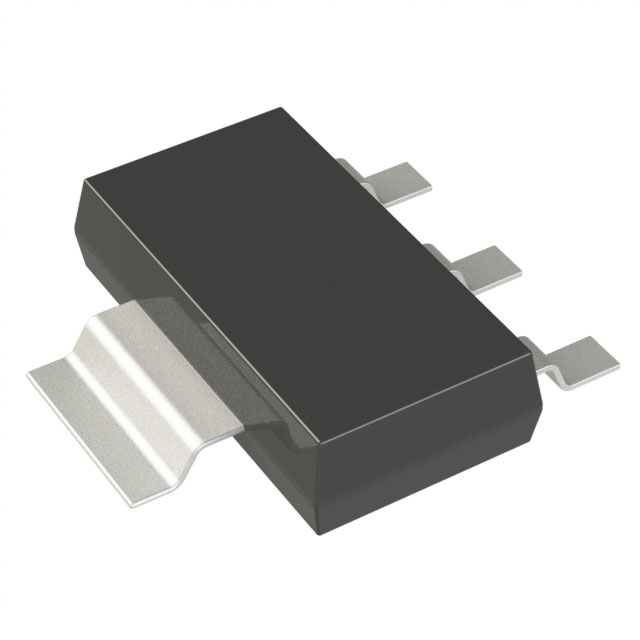

IC SUPERVISOR 1 CHANNEL SOT223-3
Deep-Dive with AI
Search across all available documentation for this part.
TC32MCDB
ActiveMicrochip Technology
IC SUPERVISOR 1 CHANNEL SOT223-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC32MCDB | TC32M Series |
|---|---|---|
| - | - | |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Number of Voltages Monitored | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Output | Open Drain or Open Collector | Open Drain or Open Collector |
| Package / Case | TO-261AA, TO-261-4 | TO-261AA, TO-261-4, TO-226-3, TO-92-3 |
| Reset | Active Low | Active Low |
| Reset Timeout [Min] | 500 ms | 500 ms |
| Supplier Device Package | SOT-223-3 | SOT-223-3, TO-92-3 |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Voltage - Threshold | 4.375 V | 4.375 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TC32M Series
IC SUPERVISOR 1 CHANNEL SOT223-3
| Part | Reset Timeout [Min] | Voltage - Threshold | Operating Temperature [Max] | Operating Temperature [Min] | Reset | Type | Package / Case | Supplier Device Package | Number of Voltages Monitored | Mounting Type | Output |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TC32MCDB | 500 ms | 4.375 V | 70 °C | 0 °C | Active Low | Simple Reset/Power-On Reset | TO-261-4, TO-261AA | SOT-223-3 | 1 | Surface Mount | Open Drain or Open Collector |
Microchip Technology TC32MEZB | |||||||||||
Microchip Technology TC32MCDB713 | |||||||||||
Microchip Technology TC32MCDB713 | |||||||||||
Microchip Technology TC32MEDB713 | 500 ms | 4.375 V | 85 °C | -40 °C | Active Low | Simple Reset/Power-On Reset | TO-261-4, TO-261AA | SOT-223-3 | 1 | Surface Mount | Open Drain or Open Collector |
Microchip Technology TC32MCZB | |||||||||||
Microchip Technology TC32MCDB713 | 500 ms | 4.375 V | 70 °C | 0 °C | Active Low | Simple Reset/Power-On Reset | TO-261-4, TO-261AA | SOT-223-3 | 1 | Surface Mount | Open Drain or Open Collector |
Microchip Technology TC32MEZB | 500 ms | 4.375 V | 85 °C | -40 °C | Active Low | Simple Reset/Power-On Reset | TO-226-3, TO-92-3 | TO-92-3 | 1 | Through Hole | Open Drain or Open Collector |
Microchip Technology TC32MCDB713 |
Description
General part information
TC32M Series
Supervisor Open Drain or Open Collector 1 Channel SOT-223-3
