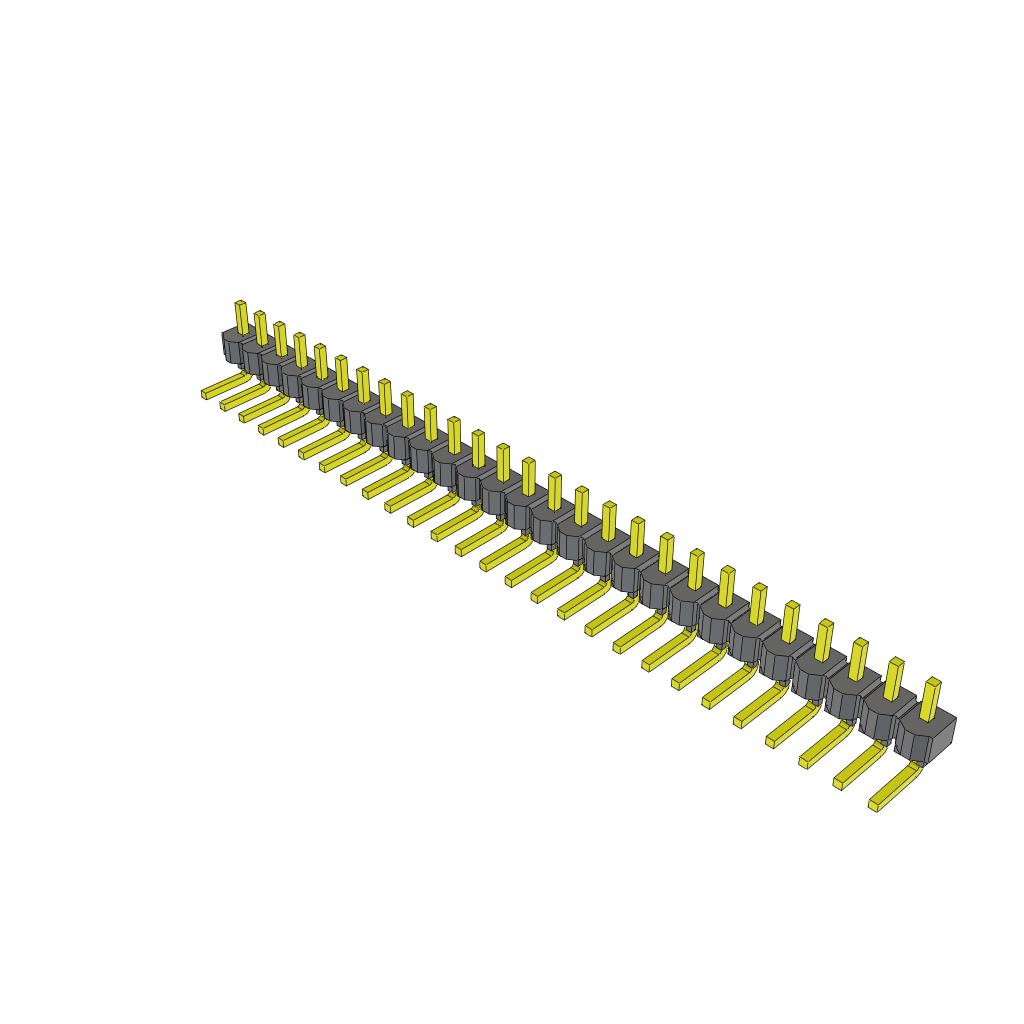

MTSW-127-07-T-S-110-RA

Active

Samtec Inc.

CONN HEADER R/A 27POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMTSW Datasheet Datasheet +1

MTSW-127-07-T-S-110-RA

Active

Samtec Inc.

CONN HEADER R/A 27POS 2.54MM

Deep-Dive with AI

DocumentsMTSW Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTSW-127-07-T-S-110-RA

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.11 in
Contact Length - Mating	2.79 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.119 in
Insulation Height [custom]	3.02 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	27
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

MTSW-127 Series

Part	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Color	Number of Positions Loaded	Overall Contact Length [x]	Overall Contact Length [x]	Mounting Type	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Insulation Material	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Termination	Contact Finish - Post	Shrouding	Style	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Number of Rows	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height [custom]	Insulation Height [custom]	Number of Positions Loaded	Insulation Height [z]
Samtec Inc. MTSW-127-22-G-D-380	Square	10 çin	0.25 çm	Male Pin	Black	All	0.63 "	16 mm	Through Hole	Phosphor Bronze	0.1 in	2.54 mm	0.1 in	2.54 mm	Polyester Glass Filled	UL94 V-0	3 µin	0.076 µm	3 A	9.65 mm	0.38 in	0.15 in	3.81 mm	Gold	Solder	Gold	Unshrouded	Board to Board Cable	54	2.54 mm	0.1 in	-55 °C	125 °C	Cuttable Header	Push-Pull	2
Samtec Inc. MTSW-127-07-G-T-240	Square	10 çin	0.25 çm	Male Pin	Black	All			Through Hole	Phosphor Bronze	0.1 in	2.54 mm	0.1 in	2.54 mm	Polyester Glass Filled	UL94 V-0	3 µin	0.076 µm	3 A	6.1 mm				Gold	Solder	Gold	Unshrouded	Board to Board Cable	81	2.54 mm	0.1 in	-55 °C	125 °C	Cuttable Header	Push-Pull	3	0.24 in	0.09 "	2.29 mm	0.43 in	10.92 mm
Samtec Inc. MTSW-127-08-G-S-185	Square	10 çin	0.25 çm	Male Pin	Black	All			Through Hole	Phosphor Bronze	0.1 in	2.54 mm	0.1 in	2.54 mm	Polyester Glass Filled	UL94 V-0	3 µin	0.076 µm	3 A	4.7 mm	0.185 in			Gold	Solder	Gold	Unshrouded	Board to Board Cable	27			-55 °C	125 °C	Cuttable Header	Push-Pull	1		0.245 in	6.22 mm	0.53 in	13.46 mm
Samtec Inc. MTSW-127-23-T-S-130-NA-001	Square			Male Pin	Black				Through Hole Right Angle	Phosphor Bronze	0.1 in	2.54 mm			Polyester Glass Filled	UL94 V-0			3 A	3.3 mm	0.13 in				Solder	Tin	Unshrouded	Board to Board Cable	27			-55 °C	105 ░C	Cuttable Header	Push-Pull	1		0.09 "	2.29 mm			0.119 in	3.02 mm	26
Samtec Inc. MTSW-127-22-G-D-100-RA	Square	10 çin	0.25 çm	Male Pin	Black	All			Through Hole Right Angle	Phosphor Bronze	0.1 in	2.54 mm		5.56 mm	Polyester Glass Filled	UL94 V-0	3 µin	0.076 µm	3 A	2.54 mm	0.1 in			Gold	Solder	Gold	Unshrouded	Board to Board Cable	54	2.54 mm	0.1 in	-55 °C	125 °C	Cuttable Header	Push-Pull	2		0.09 "	2.29 mm						0.219 in
Samtec Inc. MTSW-127-07-T-S-110-RA	Square			Male Pin	Black	All			Through Hole Right Angle	Phosphor Bronze	0.1 in	2.54 mm			Polyester Glass Filled	UL94 V-0			3 A	2.79 mm	0.11 in				Solder	Tin	Unshrouded	Board to Board Cable	27			-55 °C	105 ░C	Cuttable Header	Push-Pull	1		0.09 "	2.29 mm			0.119 in	3.02 mm
Samtec Inc. MTSW-127-22-T-D-320-RA	Square			Male Pin	Black	All			Through Hole Right Angle	Phosphor Bronze	0.1 in	2.54 mm		5.56 mm	Polyester Glass Filled	UL94 V-0			3 A	8.13 mm	0.32 in				Solder	Tin	Unshrouded	Board to Board Cable	54	2.54 mm	0.1 in	-55 °C	105 ░C	Cuttable Header	Push-Pull	2		0.09 "	2.29 mm						0.219 in
Samtec Inc. MTSW-127-10-G-D-100-RA	Square	10 çin	0.25 çm	Male Pin	Black	All			Through Hole Right Angle	Phosphor Bronze	0.1 in	2.54 mm		5.56 mm	Polyester Glass Filled	UL94 V-0	3 µin	0.076 µm	3 A	2.54 mm	0.1 in			Gold	Solder	Gold	Unshrouded	Board to Board Cable	54	2.54 mm	0.1 in	-55 °C	125 °C	Cuttable Header	Push-Pull	2		0.09 "	2.29 mm						0.219 in
Samtec Inc. MTSW-127-09-L-D-472	Square	10 çin	0.25 çm	Male Pin	Black	All			Through Hole	Phosphor Bronze	0.1 in	2.54 mm	0.1 in	2.54 mm	Polyester Glass Filled	UL94 V-0			3 A	12 mm	0.472 in	0.158 in	4.01 mm	Gold	Solder	Tin	Unshrouded	Board to Board Cable	54	2.54 mm	0.1 in	-55 °C	125 °C	Cuttable Header	Push-Pull	2				0.73 in	18.54 mm
Samtec Inc. MTSW-127-28-H-D-718	Square	30 Áin	0.76 Ám	Male Pin	Black	All			Through Hole	Phosphor Bronze	0.1 in	2.54 mm	0.1 in	2.54 mm	Polyester Glass Filled	UL94 V-0	3 µin	0.076 µm	3 A	18.24 mm	0.718 "			Gold	Solder	Gold	Unshrouded	Board to Board Cable	54	2.54 mm	0.1 in	-55 °C	125 °C	Cuttable Header	Push-Pull	2		0.312 in	7.93 mm	1.13 in	28.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.28

Description

General part information

MTSW-127 Series

Connector Header Through Hole, Right Angle 27 position 0.100" (2.54mm)
