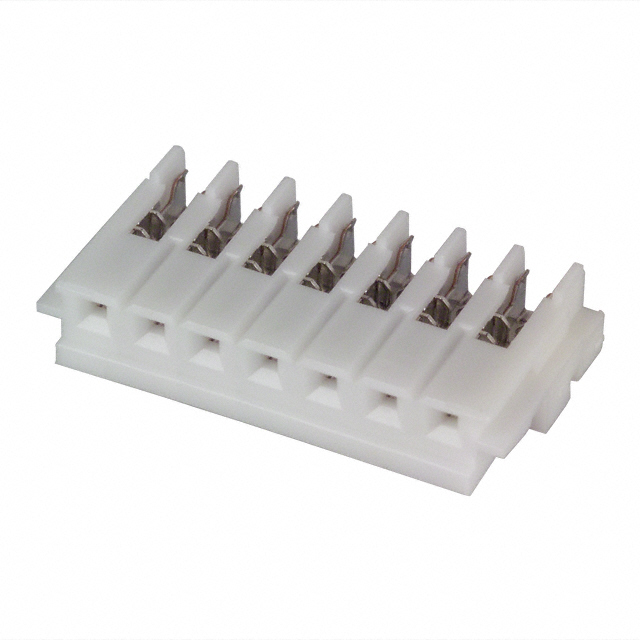

07HR-6S-P-N
ActiveJST Sales America Inc.
CONN RCPT 7POS IDC 26AWG TIN
07HR-6S-P-N
ActiveJST Sales America Inc.
CONN RCPT 7POS IDC 26AWG TIN
Description
General part information
07HR Series
7 Position Rectangular Receptacle Connector IDC Tin 26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 07HR-6S-P-N |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Fastening Type | Detent Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Pitch | 0.098 in |
| Wire Gauge | 26 AWG |
| Wire Type | Discrete |
