R114426000W

Active

Radiall USA, Inc.

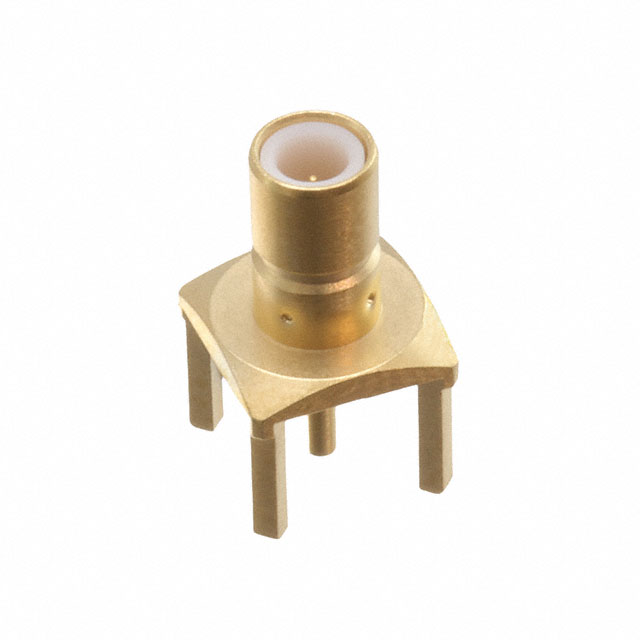

RF SMB CONNECTOR, MALE, BOARD MOUNT, SOLDER TERMINAL, RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SMB CONNECTOR, MALE, BOARD MOUNT, SOLDER TERMINAL, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R114426000W

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Dielectric Material	Fastening Type	Body Finish	Number of Ports	Mounting Type	Impedance	Center Contact Plating	Center Contact Material	Shield Termination	Connector Style	Frequency - Max [Max]	Connector Type	Housing Color	Voltage Rating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Body Material
Radiall USA, Inc. R114426000W	Polytetrafluoroethylene (PTFE)	Snap-On	Gold	1	Through Hole	50 Ohms	Gold	Brass	Solder	SMB	4 GHz	Male Pin Receptacle	Gold	500 V	500	-65 ░C	165 °C	Solder	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Receptacle, Male Pin 50 Ohms Through Hole Solder
