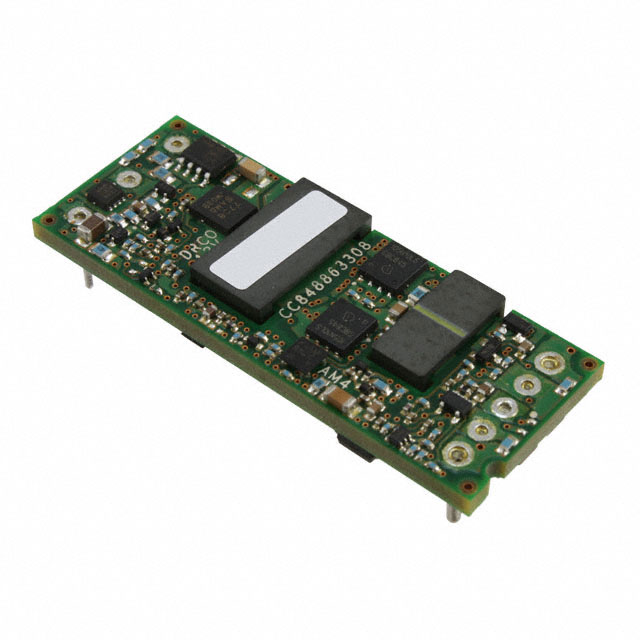

EHW007A0B41Z
OmniOn Power™
DC DC CONVERTER 12V 84W
Deep-Dive with AI
Search across all available documentation for this part.
EHW007A0B41Z
OmniOn Power™
DC DC CONVERTER 12V 84W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EHW007A0B41Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) | 7 A |
| Efficiency | 92.5 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power (Watts) | 84 W |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.8 mm |
| Size / Dimension [z] | 8.1 mm |
| Size / Dimension [z] | 0.32 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 720 | $ 35.69 | |
Description
General part information
EHW007 Series
Isolated Module DC DC Converter 1 Output 12V 7A 36V - 75V Input
