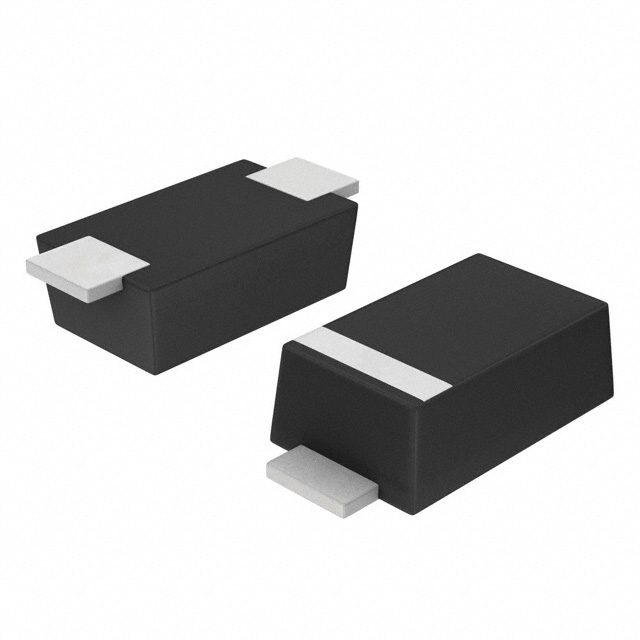

ACDBMS160-HF

Active

Comchip Technology

DIODE SCHOTTKY 60V 1A SOD123F

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 60V 1A SOD123F

Technical Specifications

Parameters and characteristics for this part

Specification	ACDBMS160-HF

Capacitance @ Vr, F	60 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	500 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-50 °C
Package / Case	SOD-123F
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123F
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If [Max]	660 mV

DIODE SCHOTTKY 60V 1A SOD123F

Part	Current - Reverse Leakage @ Vr	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Capacitance @ Vr, F	Supplier Device Package	Grade	Qualification	Technology	Voltage - DC Reverse (Vr) (Max) [Max]
Comchip Technology ACDBMS160-HF	500 µA	200 mA, 500 ns	660 mV	SOD-123F	1 A	125 °C	-50 °C	Surface Mount	60 pF	SOD-123F	Automotive	AEC-Q101	Schottky	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 60 V 1A Surface Mount SOD-123F
