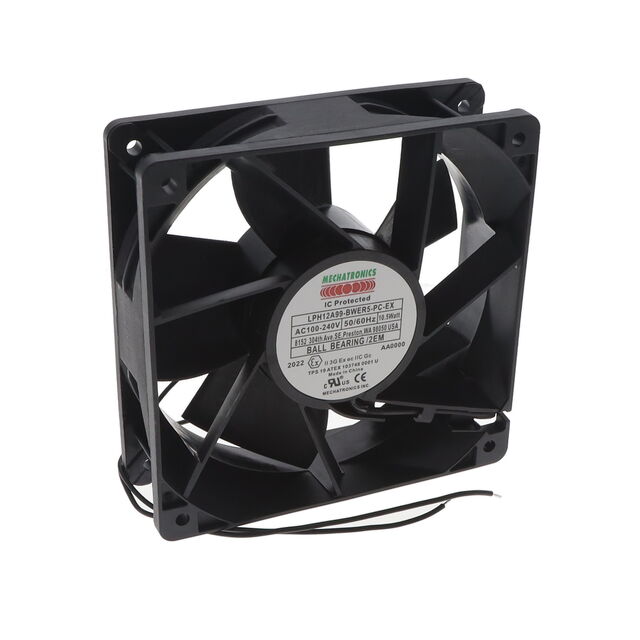

LPH12A99-BWER5-PC-EX

Active

Mechatronics Fan Group

EC FAN AXIAL 120X120X38 100-240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPH12A99-BWER5-PC-EX

Active

Mechatronics Fan Group

EC FAN AXIAL 120X120X38 100-240V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.59
		10	$ 32.51
		25	$ 31.27
		50	$ 29.21
		100	$ 26.95
		250	$ 26.54

Description

General part information

LPH12 Series

Fan Tubeaxial 100 ~ 240VAC Square - 120mm L x 120mm H Ball 138.0 CFM (3.86m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LPH12A99-BWER5-PC-EX	LPH12 Series

Air Flow	-	79 - 138 CFM
Air Flow	-	2.21 - 3.86 m³/min
Approval Agency	ATEX	CE, cUL, TUV, UL, ATEX
Bearing Type	Ball	Ball
Current Rating (Amps)	0.18 A	0.18 - 120 A
Fan Type	Tubeaxial	Tubeaxial
Features	Electronic Commutation (EC), Parylene Coating, Auto Restart	Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach), PWM Control, Parylene Coating
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP68 - Dust Tight, Waterproof, IP55 - Dust Protected, Water Resistant, IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	-	50000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	47 dB	39 - 49 dB
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-40 °C
Operating Temperature	-	-40 °C
Power (Watts)	15 W	4.2 - 15 W
RPM	3500 RPM	2500 - 3500 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	0.47 in H2O	0.18 - 0.47 in H2O
Static Pressure	117.1 Pa	44.8 - 117.1 Pa
Termination	2 Wire Leads	2 Wire Leads, 2 Terminals, 4 Wire Leads, 3 Wire Leads
Voltage - Rated [Max]	240 VAC	240 VAC
Voltage - Rated [Min]	100 VAC	100 VAC
Voltage Range [Max]	265 VAC	240 - 265 VAC
Voltage Range [Min]	85 VAC	85 - 100 VAC
Weight	-	286.2 g
Weight	-	0.631 lb
Width	-	25.5 mm
Width [y]	38 mm	38 - 38.5 mm

LPH12 Series

EC FAN AXIAL 120X120X38MM 100-24

Part	Voltage - Rated [Min]	Voltage - Rated [Max]	RPM	Material - Frame	Termination	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Fan Type	Noise	Bearing Type	Weight	Weight	Air Flow	Air Flow	Features	Current Rating (Amps)	Material - Blade	Ingress Protection	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Lifetime @ Temp.	Approval Agency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [x]
Mechatronics Fan Group LPH12A99-BWHR-2EM	100 VAC	240 VAC	3500 RPM	Plastic	2 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC)	0.18 A	Plastic	IP68 - Dust Tight, Waterproof	90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BTMR	100 VAC	240 VAC	3000 RPM	Plastic	2 Terminals	120 mm	120 mm	38.5 mm	Tubeaxial	45 dB(A)	Ball			110 CFM	3.08 mł/min	Auto Restart, Electronic Commutation (EC)	120 mA	Plastic		90 VAC	264 VAC	72.2 Pa	0.29 in H2O	50000 Hrs	CE, cUL, TUV, UL	6.2 W	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Fan Group LPH12A99-BWHR-B1+6	100 VAC	240 VAC	3500 RPM	Plastic	4 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC), PWM Control, Speed Sensor (Tach)	0.18 A	Plastic		90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BWHR-2EM-EX	100 VAC	240 VAC	3500 RPM	Plastic	2 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC)	0.18 A	Plastic	IP68 - Dust Tight, Waterproof	90 VAC	264 VAC	90.5 Pa	0.363 in H2O		ATEX
Mechatronics Fan Group LPH12B99-BTHR-PC	100 VAC	240 VAC	3000 RPM	Plastic	2 Terminals	120 mm	120 mm		Tubeaxial	44 dB	Ball			79 CFM	2.21 m³/min	Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach)	100 mA	Plastic	IP55 - Dust Protected, Water Resistant	90 VAC	264 VAC	44.8 Pa	0.18 in H2O			6 W					25.5 mm
Mechatronics Fan Group LPH12A99-BTHR-PC	100 VAC	240 VAC	3500 RPM	Plastic	2 Terminals	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC), Parylene Coating	0.18 A	Plastic		90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BTHR-2EM	100 VAC	240 VAC	3500 RPM	Plastic	2 Terminals	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC)	0.18 A	Plastic	IP68 - Dust Tight, Waterproof	90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BTHR-B1+6	100 VAC	240 VAC	3500 RPM	Plastic	2 Terminals	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball			123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC), PWM Control, Speed Sensor (Tach)	0.18 A	Plastic		90 VAC	264 VAC	89.6 Pa	0.36 in H2O	50000 Hrs	CE, cUL, TUV, UL		70 °C	70 °C	-40 °C	-40 °C
Mechatronics Fan Group LPH12A99-BWHR-B1	100 VAC	240 VAC	3500 RPM	Plastic	3 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach)	0.18 A	Plastic		90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BWHR	100 VAC	240 VAC	3500 RPM	Plastic	2 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball			123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC)	0.18 A	Plastic		90 VAC	264 VAC	89.6 Pa	0.36 in H2O	50000 Hrs	CE, cUL, TUV, UL		70 °C	70 °C	-40 °C	-40 °C
