LPH12A99-BTHR-B1+6

Active

Mechatronics Fan Group

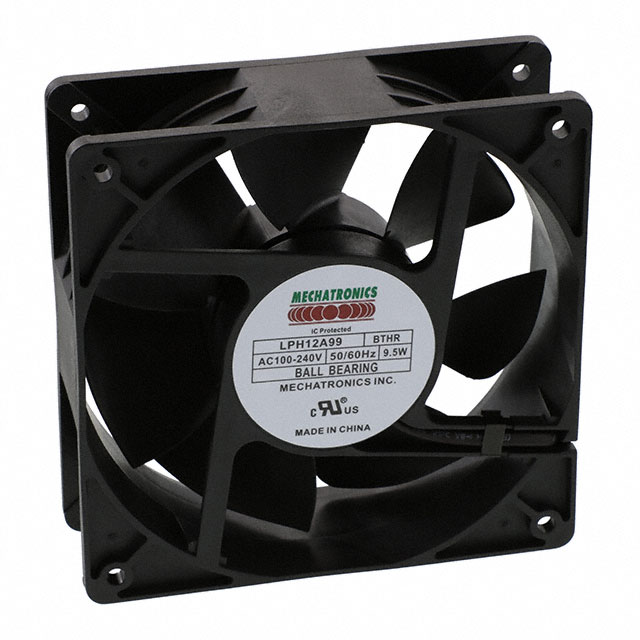

FAN AXIAL 120X38MM 90-264VAC

Deep-Dive with AI

Search across all available documentation for this part.

LPH12A99-BTHR-B1+6

Active

Mechatronics Fan Group

FAN AXIAL 120X38MM 90-264VAC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LPH12A99-BTHR-B1+6	LPH12 Series

Air Flow	123.9 CFM	79 - 138 CFM
Air Flow	3.47 m³/min	2.21 - 3.86 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL, ATEX
Bearing Type	Ball	Ball
Current Rating (Amps)	0.18 A	0.18 - 120 A
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), Electronic Commutation (EC), PWM Control	Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach), PWM Control, Parylene Coating
Ingress Protection	-	IP68 - Dust Tight, Waterproof, IP55 - Dust Protected, Water Resistant, IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs	50000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	49 dB	39 - 49 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	-	4.2 - 15 W
RPM	3500 RPM	2500 - 3500 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	89.6 Pa	44.8 - 117.1 Pa
Static Pressure	0.36 in H2O	0.18 - 0.47 in H2O
Termination	2 Terminals	2 Wire Leads, 2 Terminals, 4 Wire Leads, 3 Wire Leads
Voltage - Rated [Max]	240 VAC	240 VAC
Voltage - Rated [Min]	100 VAC	100 VAC
Voltage Range [Max]	264 VAC	240 - 265 VAC
Voltage Range [Min]	90 VAC	85 - 100 VAC
Weight	-	286.2 g
Weight	-	0.631 lb
Width	-	25.5 mm
Width [y]	38.5 mm	38 - 38.5 mm

LPH12 Series

EC FAN AXIAL 120X120X38MM 100-24

Part	Voltage - Rated [Min]	Voltage - Rated [Max]	RPM	Material - Frame	Termination	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Fan Type	Noise	Bearing Type	Weight	Weight	Air Flow	Air Flow	Features	Current Rating (Amps)	Material - Blade	Ingress Protection	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Lifetime @ Temp.	Approval Agency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [x]
Mechatronics Fan Group LPH12A99-BWHR-2EM	100 VAC	240 VAC	3500 RPM	Plastic	2 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC)	0.18 A	Plastic	IP68 - Dust Tight, Waterproof	90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BTMR	100 VAC	240 VAC	3000 RPM	Plastic	2 Terminals	120 mm	120 mm	38.5 mm	Tubeaxial	45 dB(A)	Ball			110 CFM	3.08 mł/min	Auto Restart, Electronic Commutation (EC)	120 mA	Plastic		90 VAC	264 VAC	72.2 Pa	0.29 in H2O	50000 Hrs	CE, cUL, TUV, UL	6.2 W	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Fan Group LPH12A99-BWHR-B1+6	100 VAC	240 VAC	3500 RPM	Plastic	4 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC), PWM Control, Speed Sensor (Tach)	0.18 A	Plastic		90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BWHR-2EM-EX	100 VAC	240 VAC	3500 RPM	Plastic	2 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC)	0.18 A	Plastic	IP68 - Dust Tight, Waterproof	90 VAC	264 VAC	90.5 Pa	0.363 in H2O		ATEX
Mechatronics Fan Group LPH12B99-BTHR-PC	100 VAC	240 VAC	3000 RPM	Plastic	2 Terminals	120 mm	120 mm		Tubeaxial	44 dB	Ball			79 CFM	2.21 m³/min	Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach)	100 mA	Plastic	IP55 - Dust Protected, Water Resistant	90 VAC	264 VAC	44.8 Pa	0.18 in H2O			6 W					25.5 mm
Mechatronics Fan Group LPH12A99-BTHR-PC	100 VAC	240 VAC	3500 RPM	Plastic	2 Terminals	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC), Parylene Coating	0.18 A	Plastic		90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BTHR-2EM	100 VAC	240 VAC	3500 RPM	Plastic	2 Terminals	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC)	0.18 A	Plastic	IP68 - Dust Tight, Waterproof	90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BTHR-B1+6	100 VAC	240 VAC	3500 RPM	Plastic	2 Terminals	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball			123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC), PWM Control, Speed Sensor (Tach)	0.18 A	Plastic		90 VAC	264 VAC	89.6 Pa	0.36 in H2O	50000 Hrs	CE, cUL, TUV, UL		70 °C	70 °C	-40 °C	-40 °C
Mechatronics Fan Group LPH12A99-BWHR-B1	100 VAC	240 VAC	3500 RPM	Plastic	3 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball	286.2 g	0.631 lb	123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach)	0.18 A	Plastic		90 VAC	264 VAC	90.5 Pa	0.363 in H2O
Mechatronics Fan Group LPH12A99-BWHR	100 VAC	240 VAC	3500 RPM	Plastic	2 Wire Leads	120 mm	120 mm	38.5 mm	Tubeaxial	49 dB	Ball			123.9 CFM	3.47 m³/min	Auto Restart, Electronic Commutation (EC)	0.18 A	Plastic		90 VAC	264 VAC	89.6 Pa	0.36 in H2O	50000 Hrs	CE, cUL, TUV, UL		70 °C	70 °C	-40 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 28.40

Description

General part information

LPH12 Series

Fan Tubeaxial 100 ~ 240VAC Square - 120mm L x 120mm H Ball 123.9 CFM (3.47m³/min) 2 Terminals
