UL PCT 080810

Active

FIBOX Enclosures

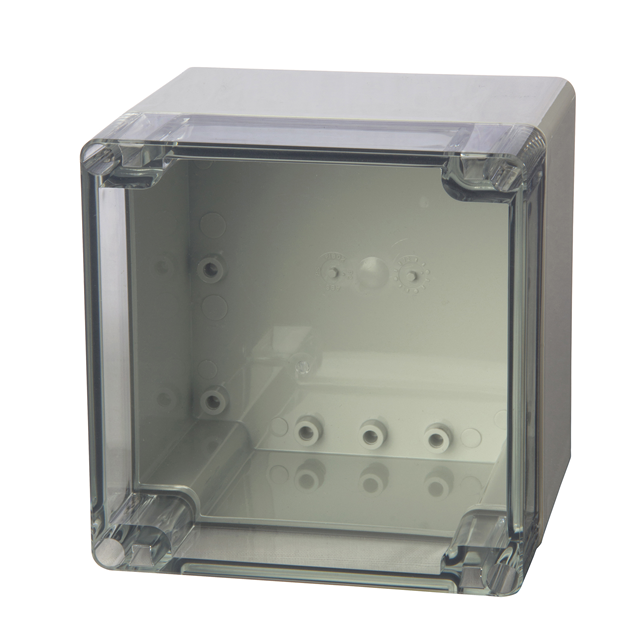

BOX PLASTIC 3.2"L X 3.1"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UL PCT 080810

Active

FIBOX Enclosures

BOX PLASTIC 3.2"L X 3.1"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.29

Description

General part information

UL PCT 08 Series

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 3.200" L x 3.100" W (81.28mm x 78.74mm) X 3.700" (93.98mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UL PCT 080810	UL PCT 08 Series

Area (L x W)	64 cm˛	64 - 94 cm²
Area (L x W)	9.92 in˛	9.92 - 126 in²
Area (L x W)	-	19.5 in˛
Color	Gray, Clear Cover/Door	Gray, Clear Cover/Door
Container Type	Box	Box
Design	Cover Included	Cover Included
Height [z]	3.7 in	2.2 - 66.04 in
Height [z]	93.98 mm	55.88 - 93.98 mm
Material	Plastic, Polycarbonate	Plastic, Polycarbonate
Ratings	IP67, IP66, NEMA 4, NEMA 12, NEMA 4X, NEMA 1, UL 508, NEMA 13	IP67, IP66, NEMA 4, NEMA 12, NEMA 4X, NEMA 1, UL 508, NEMA 13
Size / Dimension	-	78.74 mm
Size / Dimension [x]	3.2 "	3.2 - 4.7 in
Size / Dimension [x]	3.2 in	3.2 - 160.02 mm
Size / Dimension [y]	3.1 in	3.1 in
Size / Dimension [y]	78.74 mm	3.1 - 78.74 mm

UL PCT 08 Series

BOX PLASTIC 4.7"L X 3.1"W

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Design	Container Type	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Material	Color	Ratings	Size / Dimension [y]	Area (L x W)
FIBOX Enclosures UL PCT 081206	119.38 mm	4.7 in	78.74 mm	3.1 in	Cover Included	Box	2.2 in	55.88 mm	94 cm²	14.6 in²	Plastic, Polycarbonate	Clear Cover/Door, Gray	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508
FIBOX Enclosures UL PCT 081610	6.3 in, 160.02 mm				Cover Included	Box	3.7 in	93.98 mm		126 cm˛	Plastic, Polycarbonate	Gray	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	3.1 in, 78.74 mm	19.5 in˛
FIBOX Enclosures UL PCT 080807	3.2 in	3.2 "		3.1 in	Cover Included	Box	66.04 mm	66.04 mm	64 cm˛	9.92 in˛	Plastic, Polycarbonate	Clear Cover/Door, Gray	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	78.74 mm
FIBOX Enclosures UL PCT 081609	6.3 in, 160.02 mm				Cover Included	Box	3.3 in	83.82 mm		126 cm˛	Plastic, Polycarbonate	Clear Cover/Door, Gray	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	3.1 in, 78.74 mm	19.5 in˛
FIBOX Enclosures UL PCT 080810	3.2 in	3.2 "		3.1 in	Cover Included	Box	3.7 in	93.98 mm	64 cm˛	9.92 in˛	Plastic, Polycarbonate	Clear Cover/Door, Gray	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	78.74 mm
FIBOX Enclosures UL PCT 081607	6.3 in, 160.02 mm				Cover Included	Box	66.04 mm	66.04 mm		126 cm˛	Plastic, Polycarbonate	Clear Cover/Door, Gray	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	3.1 in, 78.74 mm	19.5 in˛
FIBOX Enclosures UL PCT 081209	119.38 mm	4.7 in	78.74 mm	3.1 in	Cover Included	Box	3.3 in	83.82 mm	94 cm²	14.6 in²	Plastic, Polycarbonate	Clear Cover/Door, Gray	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508
